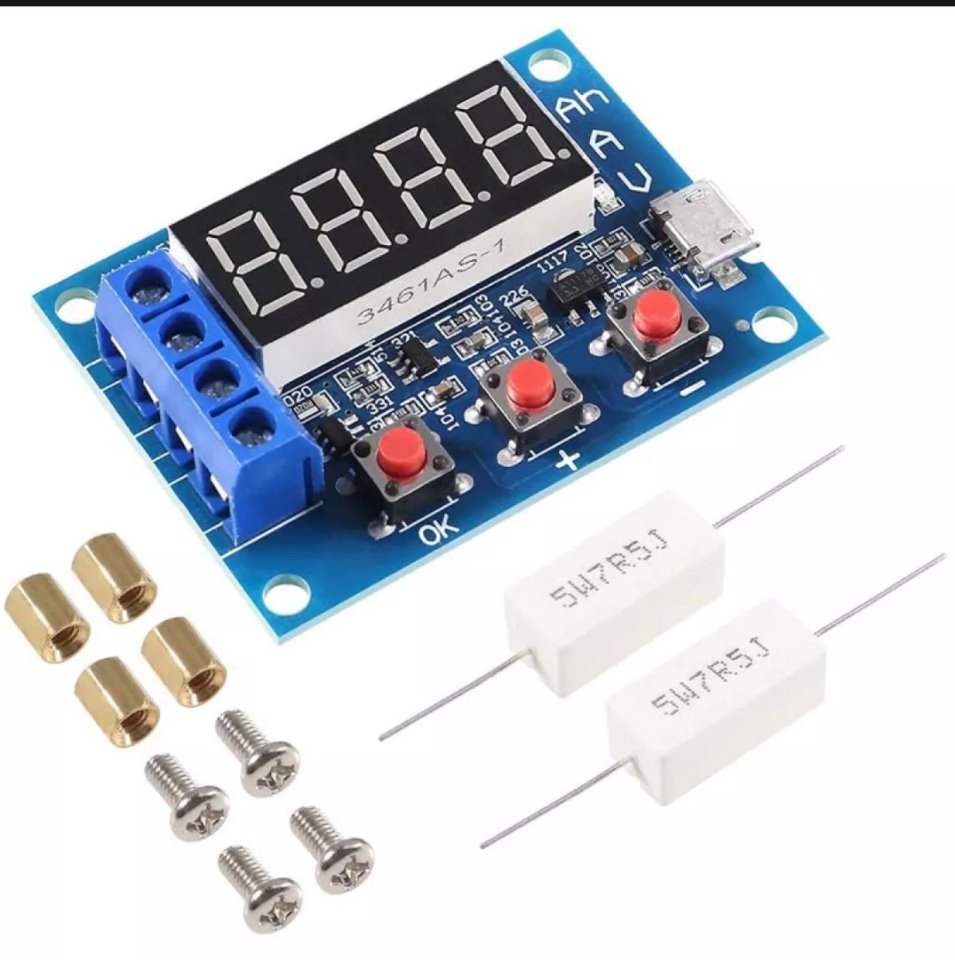

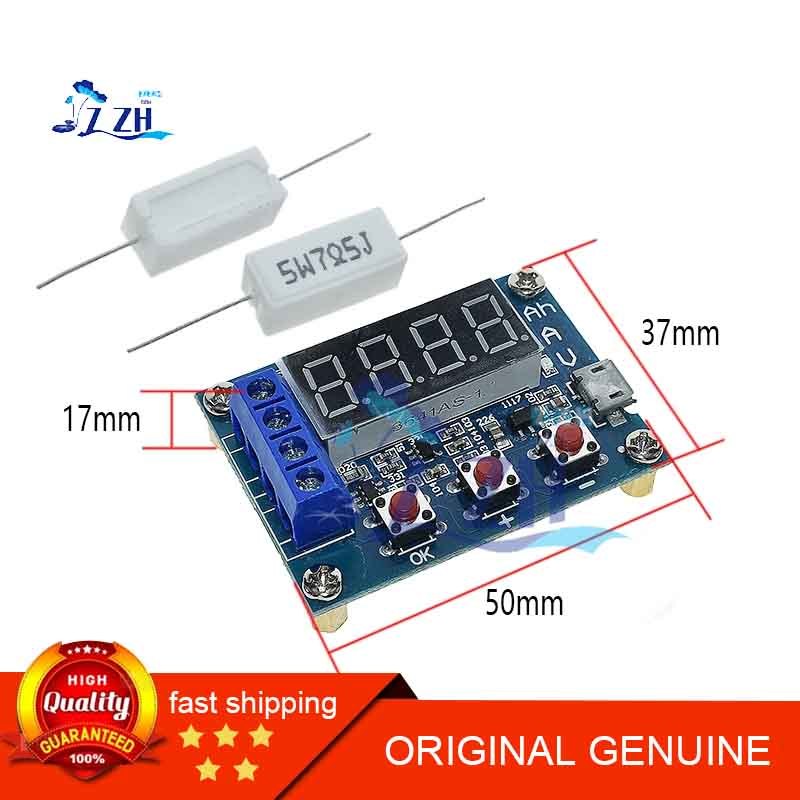

when the terminal is what all don't pick will display a small voltage, does not affect the actual measurement. Package Includes :3Pcs ZB2L3 Battery Capacity Tester After the start of the test the tester will control the load of the electronic switch is turned on, the test data shows that the process will release capacity (Ah), current discharge current (A) and battery voltage (V) between the wheel was -Maximum measurement error voltage: 1%+0., 03V ; -Maximum measurement error of current: 2%+-0., 010A., -Discharge voltage: 1., 00V-15., 00V resolution 0., 01V ; -Termination voltage range: 0., 5-11., 0V. WWZMDiB 3Pcs ZB2L3 Battery Capacity Tester Discharge Type 1., 2-12V External Load Capacity of the Battery and Other Tests 18650 Tools💎【ZB2L3 Battery Capacity Tester】:Discharge Type 1., 2-12V External Load Capacity of the Battery and Other Tests 18650 Tools⚡【Supply Voltage】:DC4., 5-6V MAX 3A⚡【Discharge Voltage】: 1., 00V-15., 00V Resolution 0., 01V ;📐【Product Size】: 50 x 36 x 17mm (Containing copper foot height)🥇Support Detection 18650 Li-ion Lithium Lead-Acid Battery-Power supply voltage: DC4., 5-6V (micro USB interface) ; -Working current: less than 70mA. ZB2L3 18650 Battery Capacity Tester Professional Great lithium battery capacity tester. It works perfectly. Just need to put it in a box to make the tests practical Load connected to the output of the positive and negative output, to work through the tester micro USB power supply (not available desktop or laptop USB powered), then the battery voltage., 3., Direct start test need only one press of the OK button, the tester can automatically develop an appropriate termination voltage of the battery full charge voltage, and will start flashing after the test three times. When the battery voltage reaches the set cut-off voltage, load control switches off the tester display data stays in capacity (Ah) and above and the corresponding indicator flashes quickly together, now displays the actual capacity of the battery is discharging capacity, about the press OK to terminate flashing allows stable data display, press again OK button to return to the power-on state can just replace the battery test the next section ., ., ., ., ., ., Error codes and their meanings:Err1: battery voltage is above 15VErr2: battery voltage is lower than the termination voltageErr3: Battery can not afford to load or discharge current line too much resistanceErr4: overcurrent (current exceeds 3., 1A)Note: this circuit in order to improve the voltage measurement accuracy, specially designed DC bias. 📐【Product Size】: 50 x 36 x 17mm (Containing copper foot height) ZB2L3 Discharge Tester ZB2L3 Battery Capacity Tester External Load Discharge 1.2-12V Battery 18650 Etc. Capacity Test Module - 502 Battery Health Checker 🥇Support Detection 18650 Li-ion Lithium Lead-Acid Battery
