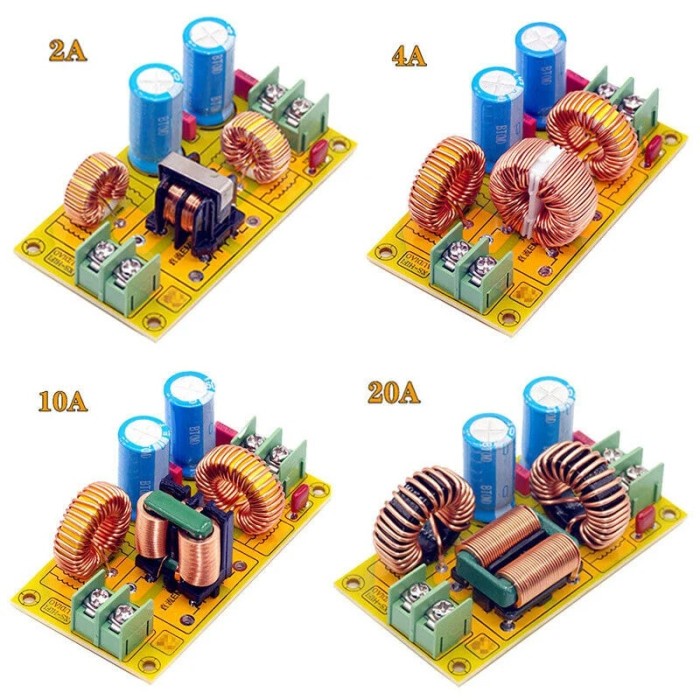

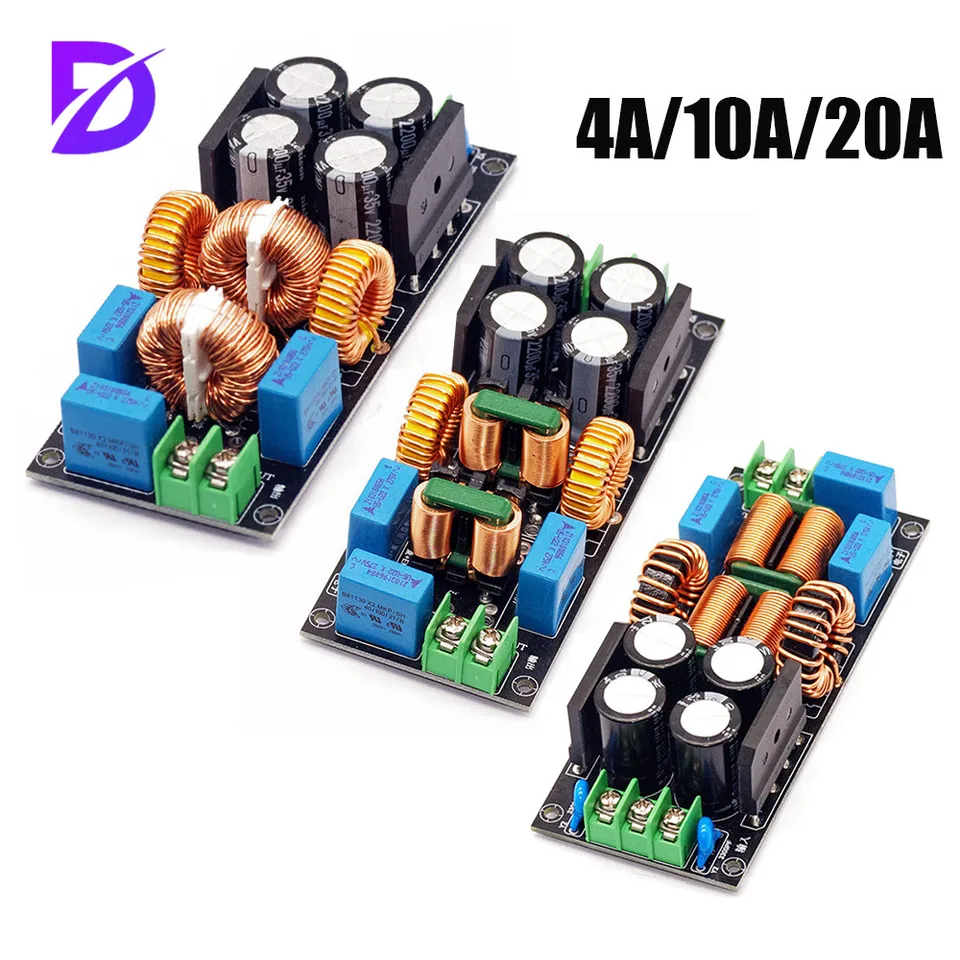

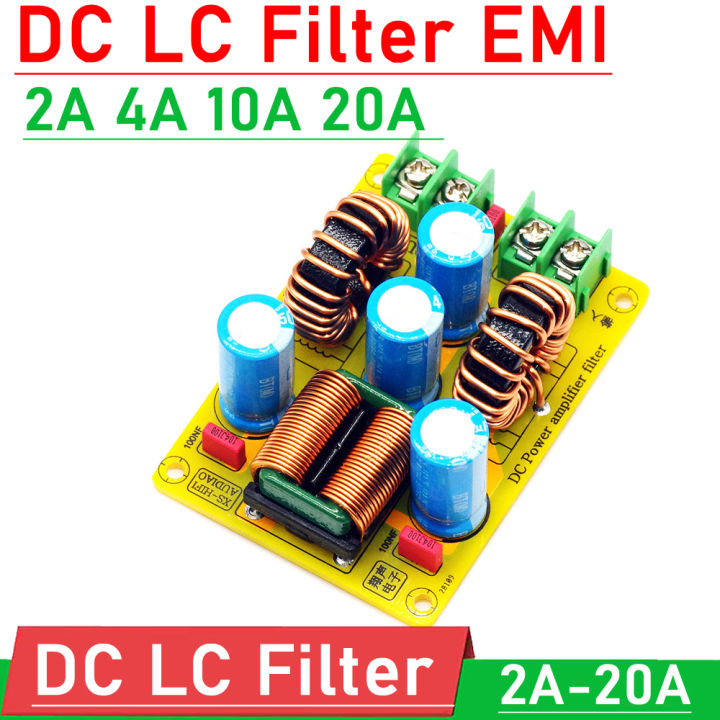

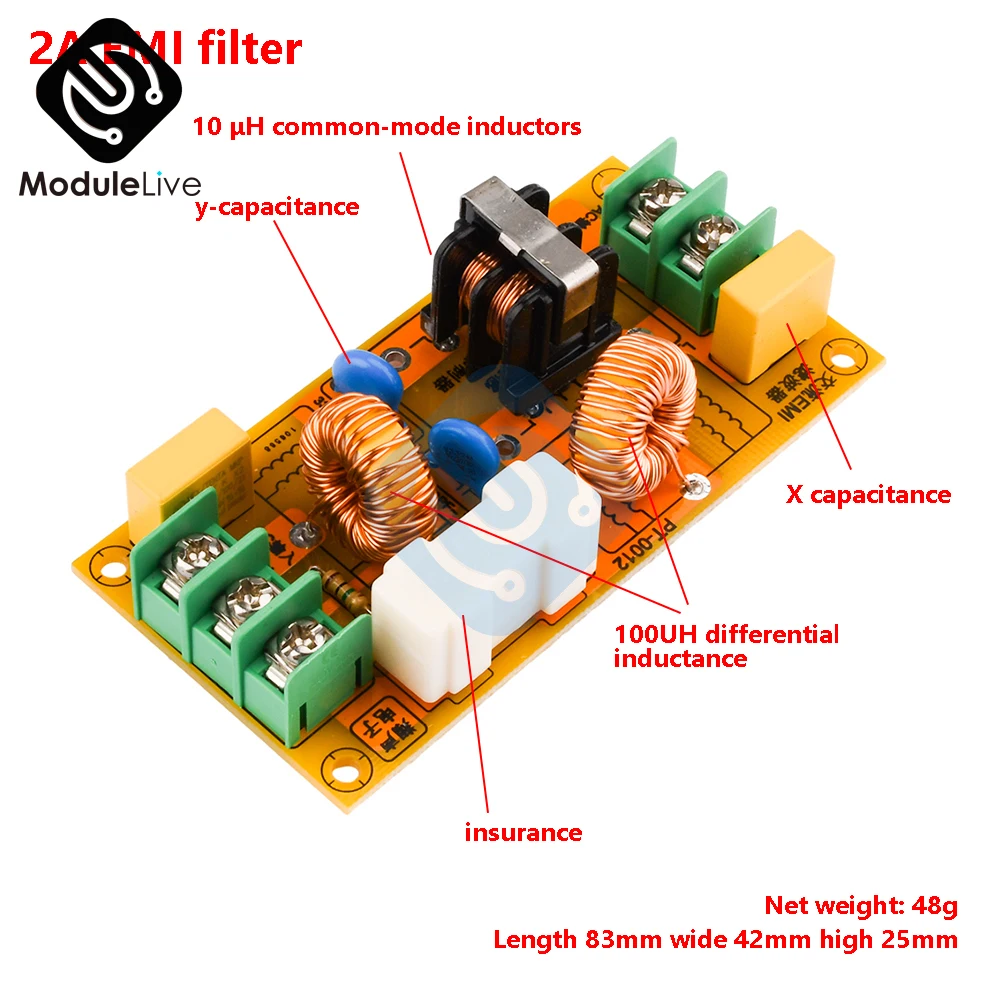

[MULTI-STAGE FILTERING STRUCTURE]: Incorporates primary and secondary LC filter circuits and a common mode filter, offering enhanced noise reduction and minimising fast transient pulse disturbances in automotive and industrial DC power applications. [HIGH CURRENT CAPACITY]: Engineered to support 10A and 20A currents at up to DC 50V, featuring a short high-current path for minimal resistance and maximum reliability in high-demand environments. The NOYITO DC LC EMI Power Filter Board (20A) offers robust three-stage LC and common-mode filtering for superior noise suppression on 0-50V DC power lines up to 20A, ensuring stable, clean power for industrial automation, solar systems, and DIY electronics applications The corresponding inductors are 10A, 20A, Input: DC does not exceed 50V(higher voltage can be increased by replacing electrolytic capacitors) Output: DC., Current: 10A. It can filter out1or more harmonics in the power supply and purify the DC power supply. DC EMI Filter Manufacturer - Captor Corporation 20 A EMI Filter Circuits are available at Electronics. offers inventory, pricing, & datasheets for 20 A EMI Filter Circuits 20A supplied Main parts specifications: Circuit board: double-sided FR4 fiberglass board Electrolytic capacitor: 50V 470UF usage 2PCS Film capacitor: 100NF 2PCS 470 PF 1PCS Magnetic ring inductor: 2PCS dosage,(20A high current single), Common mode inductor; dosage 1PCS,(20A high current single copper strip flat inductor) Socket: 7., 62 socket 2PIN 3PIN each 1PCS This module is suitable for DC power supplies that eliminate electromagnetic interference, and can be used in automobiles, motorcycles, and DC circuits with relatively strong electromagnetic interference. Specifications: Part Name:for Filters Material:As shown Size:As shown Color:As shown Package Content: 1*filter [QUALITY COMPONENTS & DURABILITY]: Made with a double-sided FR4 fiberglass PCB, 470UF and 100NF capacitors, and magnetic ring inductors to deliver reliable performance and long-lasting operation in demanding conditions. Industrial Power Filter Yaaqii 10A 20A DC50V DC LC Filter For EMI Electromagnetic Interference LC Filter 20A Please confirm compatibility and check your own technical requirements before installation.
