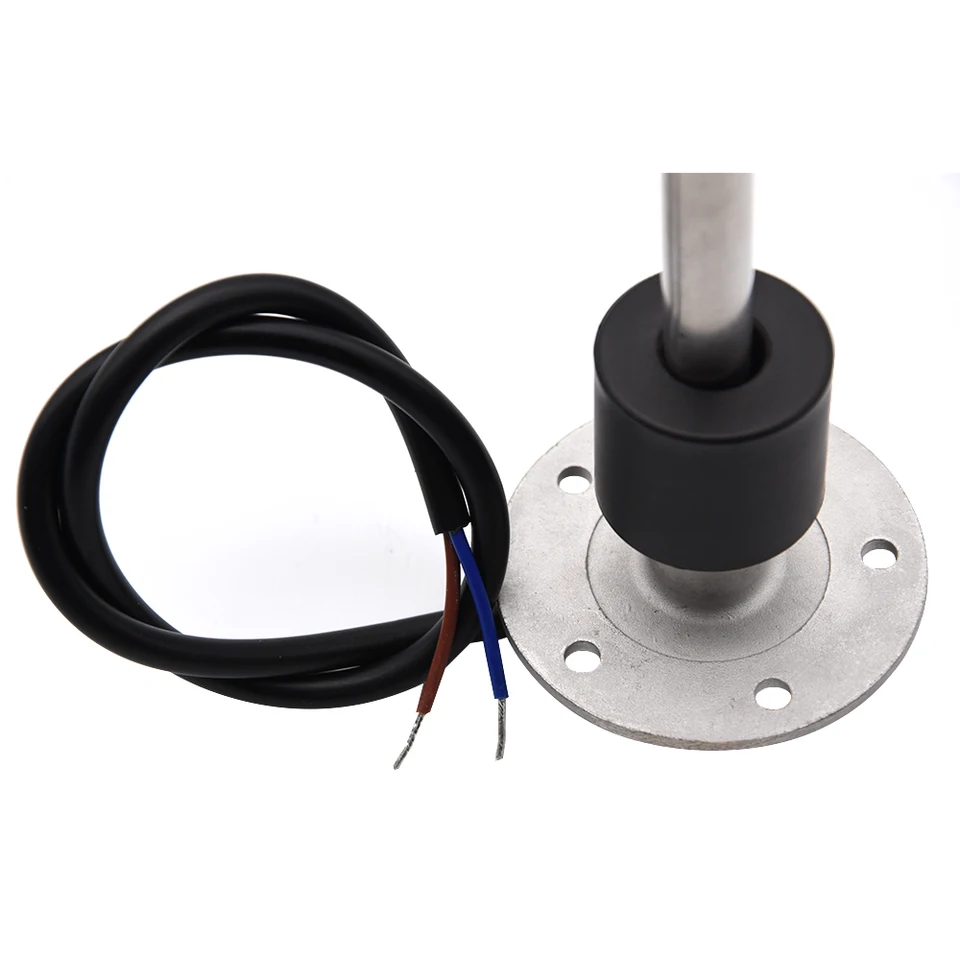

Fuel Level Sending Unit 240-33 Ohms - 15" Stainless Steel Sensor For Marine, Truck & Car Applications Simple and strong structure , Advanced corrosion resistance, Reed switch, steady output signal. 【SIZE & RESISTANCE】Length : 15(380mm), Signal output : 240-33 ohm, Waterproof IP67., 【WIRE CONNECTION】Blue wire--ground(-) ，Brown wire--Instrument signal wire Long using life, anti-vibration, anti-explosion. 240-33 Ohm Fuel Level Sensor 15 Inch 15 Inch 240-33 Ohm Stainless Steel Fuel Tank Sending Unit 15 Inch Stainless Steel Tank Sensor 240-33 Ohm Users have reported that the unit works well with different brands and models of gauges, allowing for easy and accurate monitoring of fuel and water levels (240 ohms at empty, 33 ohms at full) Description: Material: SUS316 stainless steel Length range: 15(380mm) Output signal:240-33ohm Assembly: SAE standard 5 holes Mounting: 5 pieces of M5 screws and 2 mm thick gasket Rated current for alarm switch: 500mA Resolution range: 21mm Operating temperatures: - 40 to 85°C Protection rank: IP67 Attention: To Allow the Fule Sender not Hit the Bottom of the Tank, Please Measure from the Top of Your Tank to the Bottom on the Outside and Subtract 1 Inch the Length of Sender. Buy Fuel Sensor, Fuel Water Tank Level Sender Steady Output Signal IP67 Widely used in fuel, water, kerosene and chemical tanks
