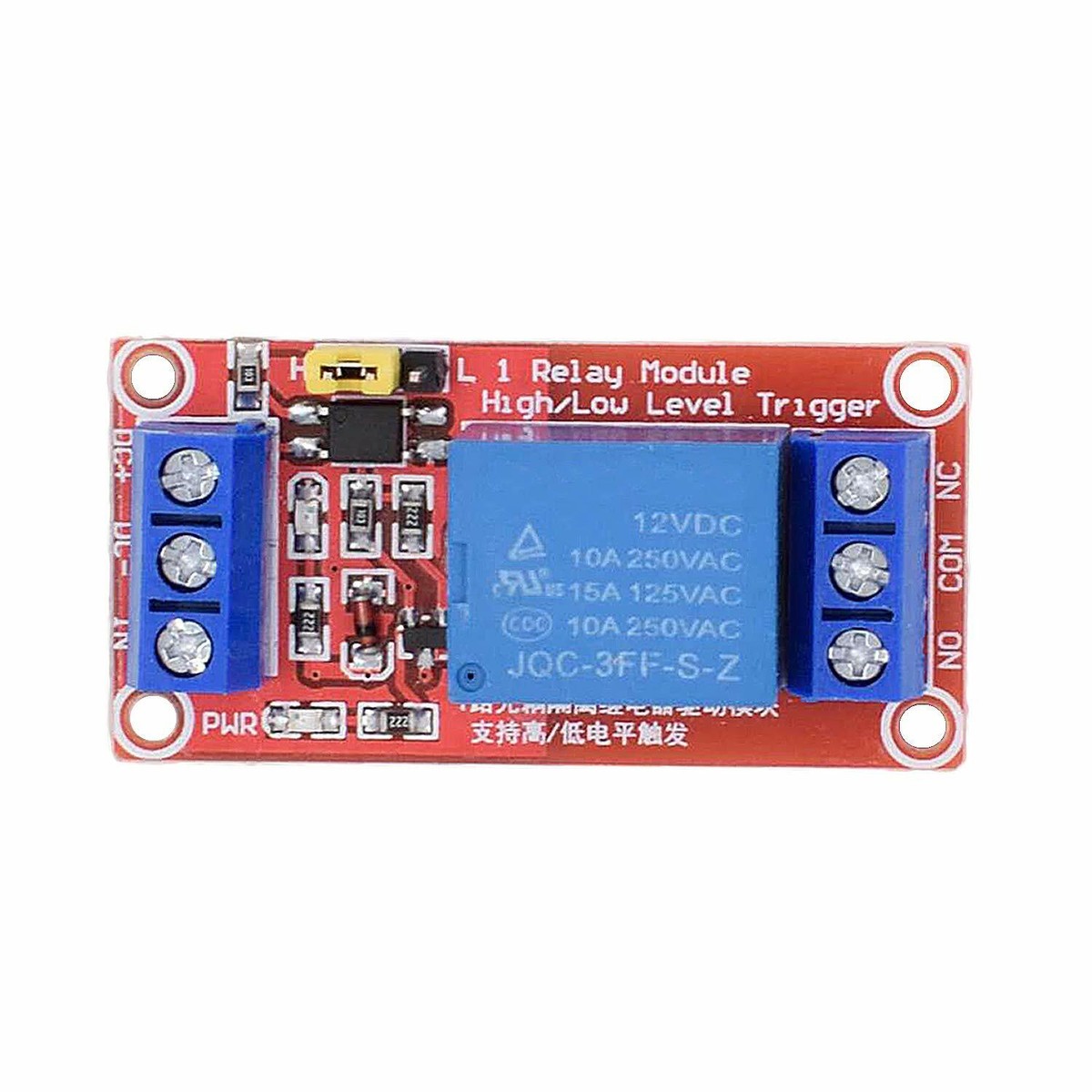

1 Channel 12v Relay Module With Adjustable High And Low Level Trigger For Versatile Control Applications Rs6642 2855235381312

Raspberry Pi Relay 1 Channel 12v Relay Module With Adjustable High And Low Level Trigger For Versatile Control Applications Rs6642 2855235381312 10A Relay High and low level trigger options:It is low level trigger when jumper connect to LOW pinIt is high level trigger when jumper connect to HIGH pinPackage includes: 10PCS x 1 Channel 12V Relay Module Board AEDIKO 10pcs Relay Module DC 12V Relay Board 1 Channel with Optocoupler Isolation Support High or Low Level Brand: AEDIKO Sold By: $26.76 In Stock Ships from US, Arrives in 5-10 business days Free Standard Shipping over 89 The module can be set to high or low to trigger by jumper. Maximum load: AC 250V/10A, DC 30V/10A.power indicator (green), relay status indicator (red). Feature:Adopt SMD optocoupler isolation,it has strong driving ability and stable performance;The module can be set to high or low to trigger;Fault tolerant design, even if the control line is disconnected, the relay will not operate; Module size: 50X26mmX18.5mm (LXWXH);there are 4 fixing bolt holes,3... Module interface:1., DC+: positive power supply (VCC)2., DC-: negative power supply (GND)3., IN: can be high or low level control relayRelay outputs:1., NO: normally open relay interface；the relay is suspended before the suction, and it is short-circuited with COM after the suction., 2., COM: Common Interface Relays3., NC: normally closed relay interface；and the relay is shorted to COM before the suction is closed. 5V/12V low level trigger One 1 Channel Relay Module – Electronics Co., Ltd User-friendly interface design, all interfaces can be directly connected to wires through terminal blocks, which is very convenient., Module size: 50*26mm*18., 5mm (L*W*H), there are four fixing bolt holes, 3., 1mm holes, 44., 5mm*20., 5mm spacing.
