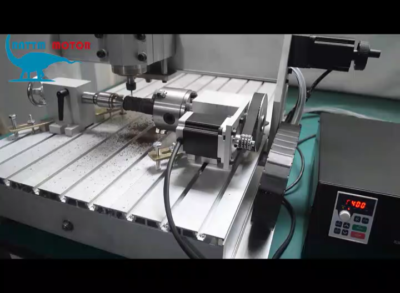

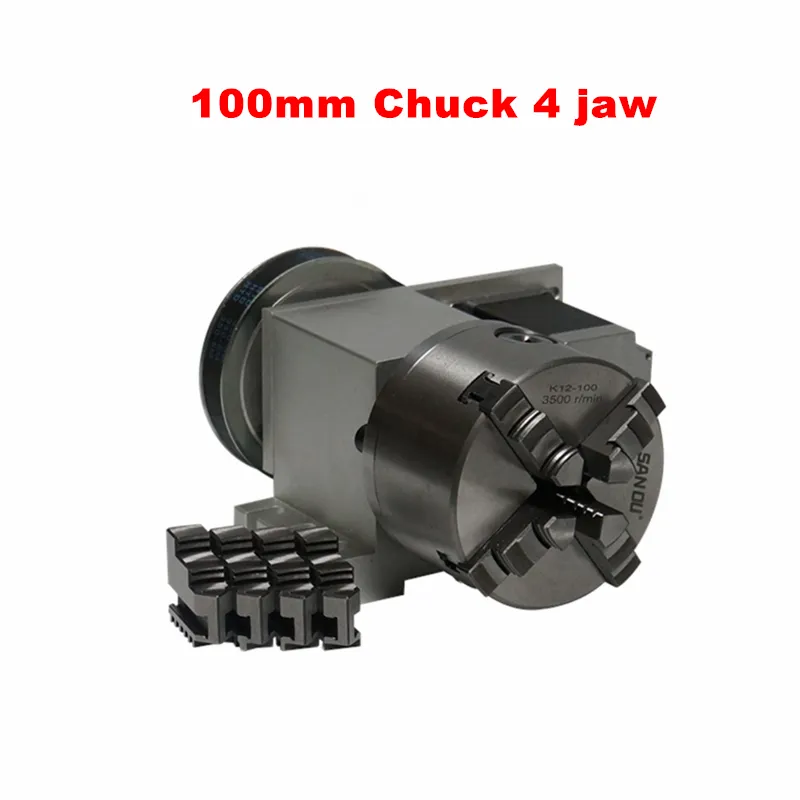

The fourth axis engraving machine can be used for engraving spirals, scars etc About this item Stepper motor's green wireconnect driver's A- port Chuck type: K12-100mm 4 jaw [4TH AXIS]Model:K12-100mm; Chuck Type:K12-100mm 4 Jaw Chuck; Inner through hole diameter:22mm; Accessories:1 Set of Anti-claw and wrenches. CNC 4th Rotary Axis Router suits column engraving and flat material carving and cutting. Besides the side position of rotary device, you could also mount... Package include: 1set 4th axis K12 100mm ( Includes stepper motor and 4 jaw chuck) Ratio 6:1 1 x 65mm MT2 Tailstock Descriptions: Chuck type: K12 100mm 4 jaw centering chuck Center height: 65mm Total height: 115mm Angle: 0., 3°/ step Gear box output shaft diameter: 25mm Reducing ratio: 6:1(belt deceleration mode) Stepper motor: Nema23 57mm 3A 2-phase 4 wire Accessories: Set of Anti-claw and wrenches The fourth axis parameter settings: Mach3 system settings: the pulses required for 1° (Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360° For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 6:1 (200 x 16 x 6 ) / 360=53., 33333) Weihong system settings: 1 pulse along the angle 360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 6:1 360 / (200 x 16 x 6) =0., 001875 Tailstock type MT2 Center Height: 65mm Stretch distance: 50mm Top tip: Activity type Axial locking wrench for tailstock Nema23 stepper motor 76mm Shaft Diameter: 8 mm Step Angle:1., 8 Current: 3A Temperature Rise: 80 c max Insulation Resistance: 100MOhm(500V DC) Holding Torque: 18kg., cm Buy CNCTOPBAOS CNC Rotary Axis 4th Axis with 3 Jaw Chuck,K11-100 Mua CNCTOPBAOS CNC Rotary Axis 4th Axis with 3 Jaw Chuck,K11-100mm Hollow Shaft Dividing Head Rotational A Axis,with 65mm Tailstock,Reducing Ratio:6:1 for CNC Router Lathe Engraving Milling Machine trên Amazon Mỹ chính ; Internal jaw clamping range: 2-30 mm/0., 08-1., 18 inches; Internal jaw jamming range: 30-90 mm/1., 18-3., 54 inches; With four Anti-claw and Wrench CNCTOPBAOS CNC 4th Axis Dividing Head,K12-100mm 4 Jaw Chuck,CNC Router Milling Machine Rotational Axis A-Axis Reducer Ratio 6 Specifications of MT2 Tailstock: Morse Taper 2 Live Center Movable MT2 Tailstock; Center Height: 65 mm/2., 56 inch; Expansion stroke: 45 mm1., 77 inch; Stretch distance: 50 mm/1., 97 inch; Top tip: Activity type; With Axial locking wrench for tailstock; Exquisite workmanship,Durable,Stable performance,Sturdy and Wear-resistant; Weight: 2., 5 KG/5., 5 LB Nema23 Stepper Motor: Phase: 2 Phase; Type: Hybrid; Step Angle: 1., 8°; Current: 3., 0A; Holding torque: 270oz-in/1., 8Nm; Shat diameter: 8mm; 4 Lead Wires: A+ to Red ; A- to Green ; B+ to Yellow ; B- to Blue; Motor Size: 57x57x76 mm
