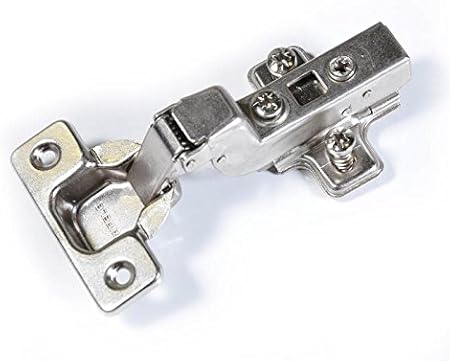

Nickel Plated Steel Hinge Germany HAFELE 110 Degree Soft Close Door Hinge Kitchen Cabinet Cupboard Set Of Cabinet Hinges For door thickness 15 - 23 mm; Cup diameter Ø 35 mm (standard size); Cup depth 11., 5 mm This item: HAFELE 110 Degree Inset Hinge Without Integrated Buffering Kitchen Cabinet Cupboard Wardrobe Door Hinges with Slide on Arms Automatic Closing Spring Steel Germany Brand Pack of 2 Very smooth opening of doors and cupboards 110° HINGE DETAILS Drilling depth :Hinge cup 11.5 mm. Material :Cup and hinge arm: Steel. - Half Overlay Mounting. Mounting Plate Type Mounting Plate Fixing Product Details -Order Reference: 31190605 -Type: Häfele Full overlay mounting, automatic closing spring hinges, Metalla -Opening angle: 110 degree -Cup diameter: Ø 35mm -Drilling Depth Hinge cup min., : 11., 5 mm -Drilling dimensions for cup fixing : Drilling pattern (48mm / 6mm) -For door thickness: 15 mm (min) - 23 mm (max) -Hinge Cranking: 16 mm -Plate Mounting: For sliding on -Hinge arm, quick fixing -Material: Steel -Finish: Nickel plated pressed steel cup and arm -Door mounting option: Inset Application -Cover cap for carcass: No -Adjustment: Side adjustment ± 2., 5 mm, Height adjustment ± 2 mm, Depth adjustment -1 mm to + 3 mm Package Contents -Cabinet hinges: Pack of 2 -with countersunk fixing screws Important Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm Hafele 110 Degree Metalla 300 Series Concealed Cabinet Hinge Inset - 2 Sturdy steel concealed cup hinges with slide on mounting plate assembly
