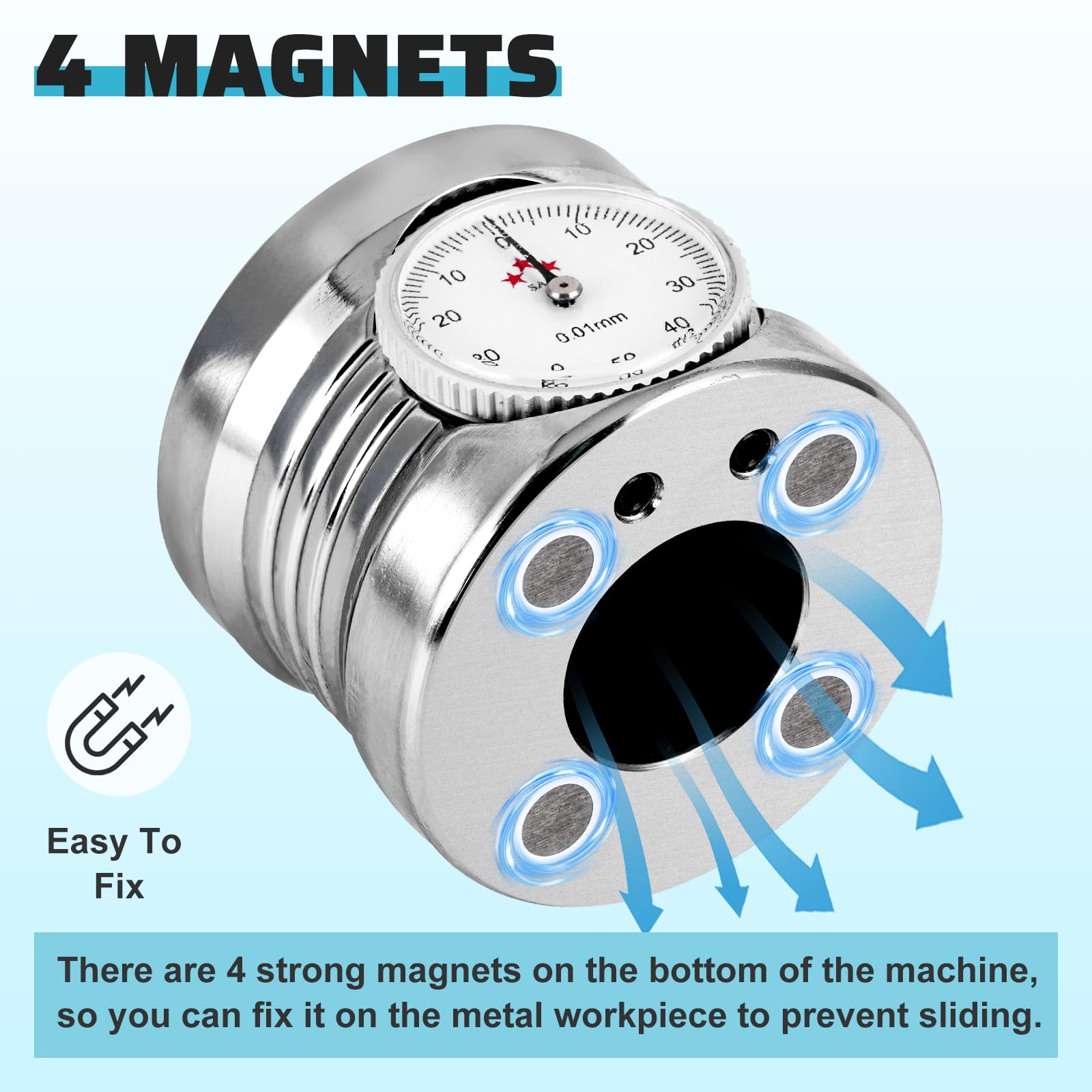

SpecificationsProduct Name: z axis zero setterHeight: 2 inches（50mm）Accuracy: 0., 0005 inches（0., 01mm）Measuring Surface Diameter: 1., 02 inches（26mm）Number of Bottom Magnets: 4Product Weight: 1., 21 poundsProduct Size: 2., 05 * 2., 05 * 2 inchesPackaging Weight: 1., 32 poundsPackaging Size: 3., 94 * 3., 94 * 2., 76 inchesApplication: Tool diameter ≤ 1., 02 inches； Horizontal lathe, milling machine and other equipmentUsage1., Press the calibration bar onto the standard surface of the machine. Z Axis Zero Pre-setter Tool Setter Voor CNC Router... – Grandado The accuracy can reach 0., 0005 inches and it is easy to read. With Storage Case: The z axis zero setter is equipped with a shock-resistant storage case, which makes it easy to store and move the machine. It can reduce manual error and ensure the consistency of measurement results. There are 4 strong magnets on the bottom of the machine, so you can fix it on the metal workpiece to prevent sliding. Adjustable Range: The measuring height of the z axis tool setter is 2 inches and the diameter of the measuring surface is 1., 02 inches, suitable for tools with a diameter of up to 1., 02 inches. Its measuring surface has a range of 0 to 0., 14 inches. Then rotate the outer ring of the dial to return the needle to zero, which is very convenient. It has two dials, the large one is the scale and the small one represents the cycles. Milling Machine Gauge Setter Consfly Digital Z Axis Zero Setter CNC Tool Setter With Calibration Bar Tool Setting Gauge With Calibration Bar Safe Work: The measuring surface of the cnc tool setter is spring-loaded with low elasticity. Wide Application: The cnc gauge setter can be used to measure and correct the height of the z-axis. It is not limited by the material of the workpiece, which makes it highly applicable. Suitable for horizontal CNC lathe, milling machine and other high-precision processing equipment tools. See more product details Report an issue with this product Before tool setting, you can use it to press the measuring surface. Z Axis Setter Z Axis Setter With Meter Photoelectric Tool Z Axis Zero Wide Application: The cnc gauge setter can be used to measure and correct the height of the z-axis.
