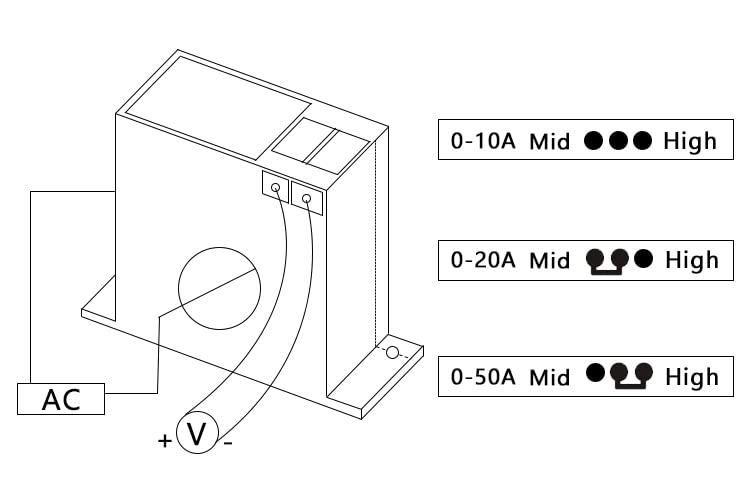

It has the characteristics of strong overload ability, high precision, high isolation, high security, low power consumption and strong anti-interference ability. The measured current AC: 0-10A / 20A / 50A can be selected. AC Current Transmitter Current Transformer, 1 Current Transmitter Transducer D A Output Current Transmitter Cutting Edge Features Isolation Current Sensor Current output type requires external DC: 24V ± 10% Input feedthrough current (AC): 0-10A / 20A / 50A (SZT15 series) 0-100A / 150A / 200A (SZT20 series) Output Type (DC): Voltage output type: 0-5V/10V Current output type: 4-20mA Switch on minimum: 0., 5±0., 2A (round type) 1., 5±0., 2A (clamp type) Maximum current through current: 200%, the feed current cannot exceed 200% of the rated value Power consumption: ≤1W Tape: ≤1% Accuracy: ±1% Maximum leakage current: ≤0., 1mA Linearity: 10%-100% Response time: ≤200ms Through the heart wire diameter: 0., 35-20mm Working temperature: -20-60 °C Working humidity: 5-95% (no condensation) Housing material: self-extinguishing material ABS (Cycolac 94v-0) Insulation withstand voltage: 2000VAC 50/60Hz 1min Package list: 1 × AC Current Transducer Working principle: Based on electromagnetic induction, inductive current will be generated when the current in the circuit changes. Current Transmitter FCS521-SD-10V by Fearlie offers accurate AC current conversion from 0-50A. Ideal for monitoring and control in various applications Through-heart structure design, isolation withstand voltage up to 2000V AC. Magnetic hysteresis less than 1%, can be used in strong magnetic field conditions. It is suitable for various applications requiring current and voltage conversion. Output signal DC: 0-5V / 0-10V /4-20mA three forms are available. Mutual inductance current monitoring, high current detection accuracy, stable performance, safe isolation of input and output. Power Analyzers, PAV, co-axial shunts, transducers, sensors | Powertek It can be mated with various AD and constitute various digital centralized acquisition systems. Current Transducer, 0 to 10A/20A/50A,0~10V. $42.87. FCS521-SP-10V. Learn More... It is used for AC current monitoring, detection, current overload protection, and is also used as an electronic switch for automatic control systems.
