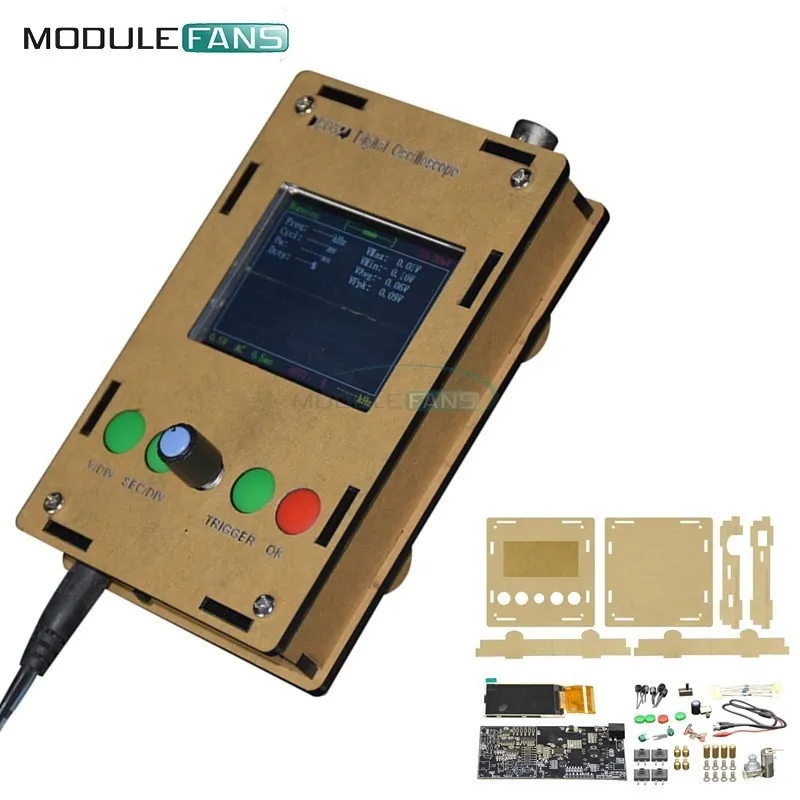

Features : Analog bandwidth: 0 - 200KHz Sampling rate: 1Msps max Sensitivity: 10mV/Div - 5V/Div Sensitivity error: Vertical resolution: 12-bit Timebase: 10us/Div - 500s/Div Record length: 1024 points Built-in 1KHz/3., 3V test signal Waveform frozen (HOLD) function available 9V DC (8 - 12V acceptable) Supply Current: 120mA NOTE: 9V DC power supply required., Not included. Oscilloscope Kit DSO138 Open Source 2.4" TFT 1Msps Digital Oscilloscope DIY Kit Probe Unsoldered Flux Workshop Stm32 200khz Not Assemble Open Source Oscilloscope Source codes are also available to allow user to add their own features. Can freeze at any time waveform display (HOLD function)., Comes 1Hz /3., 3V square wave test signal source. With automatic, regular and one-shot modes, easy to capture the moment waveform. Adjustable vertical displacement, and with instructions. Detailed assembly instructions are provided in combination with troubleshooting guide and schematc. Digital DIY Oscilloscope Kit uses ARM Cortex-M3 processor (STM32F103C8), 2., 4-inch color TFT display screen can be used as ARM test development board. Dimension: 117mm X 76mm X 15mm NOTE: Assembly and soldering required. DIY Oscilloscope Kit DSO138 2.4 "TFT Digital Oscil... – Grandado The DSO138 Digital Oscilloscope DIY Kit is a compact, pocket-sized oscilloscope that allows hobbyists and students to build their own oscilloscope from scratch. It features a 2.4-inch color TFT display, ARM Cortex-M3 processor (STM32F103C8), and supports real-time sampling rates up to 1Msps. This kit is perfect for learning about oscilloscope circuitry and gaining hands-on experience in... With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX., /MIN., /AVG., /Peak-Peak/virtual values. 2.4 Inch TFT DIY Digital Oscilloscope Kit with Pow... - Grandado Package included: 1 X Oscilloscope DIY kit 1 X Probe 1 X Instruction Please note that this kit need to be assembled and soldered by yourself.
