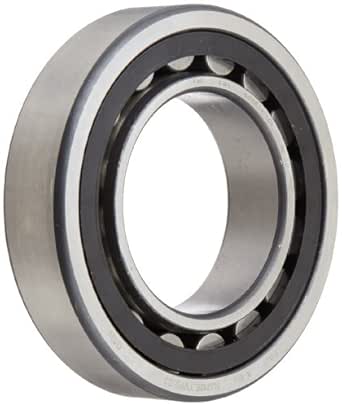

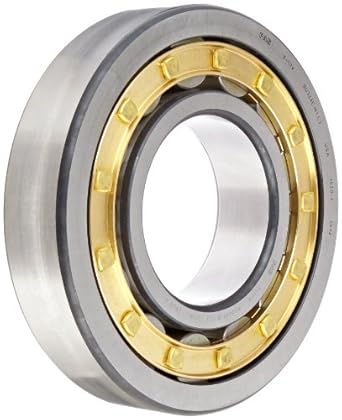

30mm Bore Bearing FAG NU206E-TVP2 Cylindrical Roller Bearing - 30mm ID, 62mm OD, 16mm Width, Single Row, Normal Clearance NU206E-TVP2 Bearing

Cylindrical Roller Bearing; 30MM Bore; Straight; 62MM Outside Diameter; 16MM Width; Polymer Cage; RBEC 1 | ISO P0; Single Row; Inner Ring - Both Sides Separable; No Snap Ring; Relubricatable; Retainer; C3-Loose Internal Clearance Specifications Main bearing dimensions DIN 5412-1 Basic dynamic load ratings DIN ISO 281 C3 radial internal clearance DIN 620-4 (ISO 5 753) Shaft and housing tolerances ISO 286 Through-hardening steel for inner and outer rings ISO 683-17 System for creating part numbers for rolling bearings DIN 623-1 Roller bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. 30x62x16mm Roller Bearing 30mm Bore Bearing FAG NU206E-TVP2 Cylindrical Roller Bearing - 30mm ID, 62mm OD, 16mm Width, Single Row, Normal Clearance NU206E-TVP2 Bearing Single Row Roller Bearing FAG manufactures a variety of bearings that meet International Organization for Standardization (ISO) and Deutsches Institut für Normung (DIN) standards for quality assurance. Founded in 1883, FAG is based in Schweinfurt, Germany. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Removable inner ring in open bearing allows for lubrication in place It has a C3 radial internal clearance designation to indicate that the radial slack between the inner and outer rings is greater than CN (normal) and the press fit inner and outer rings can withstand a large temperature differential. This FAG single row cylindrical roller bearing with a glass fiber reinforced polyamide cage and removable inner ring is suitable for applications that support high radial loads and no axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. The bearing is non-locating, with two ribs on the interior circumference of the outer ring and no ribs on the exterior circumference of the inner ring, to allow the outer and inner rings to axially displace relative to each other from the central position. NU206E.TVP2.C3 FAG • • Order directly online Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. Polyamide cage is lightweight and produces less noise and vibrations than brass cages All roller bearings are open, shielded, or sealed. This NU206 E TVP2 C3 bearing is a single row cylindrical roller bearing, it has no flanges on the inner ring, an increased capacity design, a glass fibre reinforced polyamide PA66 and a larger than normal radial internal clearance. The bearing's dimensions are 30x62x16 This cylindrical roller bearing can support heavier loads than bearings with comparable-sized ball bearings because the cylindrical shape of the rollers provides more surface area for distributing the load, and it also has a larger roller set than the standard roller design.
