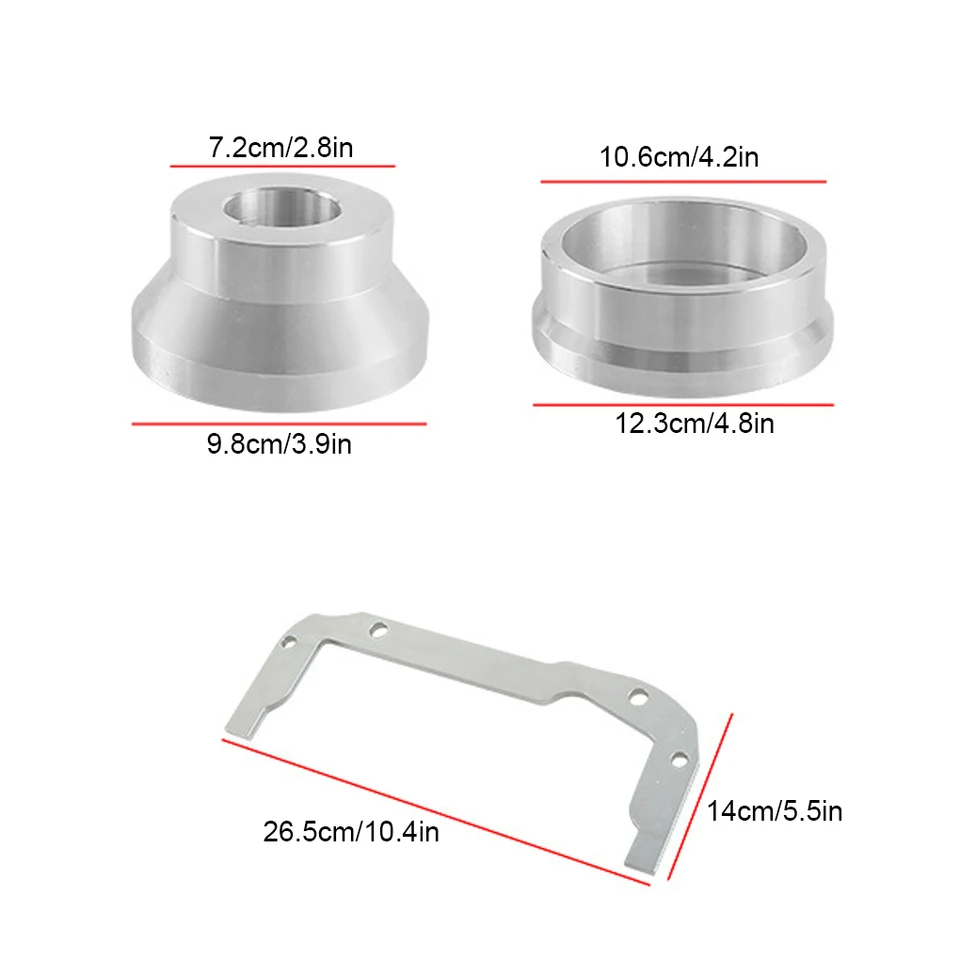

LS Rear Main Seal Alignment Tool,Front Cover Alignment Tools And Oil Pan Front Cover Alignment Tool Kit For Gm Ls Engine 4 8 5 3 5 7 6 0 Ls1 Ls2 Ls3 Ls6 L99 Ls4 Ls9 Lsa Lq4 Lq9 L76 L92

This kit is a must have for engine builders and mechanics! You will have to exercise care to align horizontally the cover to the oil pan. Oil Pan Alignment Tool LS Rear Main Seal Alignment Tool,Front Cover Alignment Tools And Oil Pan Front Cover Alignment Tool Kit For Gm Ls Engine 4 8 5 3 5 7 6 0 Ls1 Ls2 Ls3 Ls6 L99 Ls4 Ls9 Lsa Lq4 Lq9 L76 L92 Oil Pan Alignment Kit Fits for all LS series engine. High Performance: This front and rear cover billet alignment tool kit helps easily align the front and rear engine covers to make sure the cover is centered, allows you properly install the seal to avoid leaks FUNCTION -- Helps align the front and rear engine covers for proper seal function and longevity. This tool mimics the balancer to center the cover on the front seal OR locates on the ID of the seal bore in the cover without the seal installed. MATERIAL -- Billet aluminum & Quality steel. Installation of front cover: (no seal installed in Front cover):-Loosely install the front cover-Install the seal tool over the snout of the crankshaft using the large end-Check the alignment to the oil pan-Tighten the front cover bolts to specifications-Install the balancer lip seal - For this reason, oil pan can't simply be slapped in place along with the front and rear engine covers, it must be carefully aligned with the block. Why I Swear by the LS Rear ain Seal Tool A must haveThis is a must for people replacing the front or real main seal in a For GM LS Series engine. APPLICATION -- Fits for all LS series engines. · FUNCTION -- Helps align the front and rear engine covers for proper seal function and longevity. · BENEFITS -- 1 It is critical that the seals be aligned perfectly concentric to the front diameter of the balancer hub sealing surface., BENEFITS -- 1., Cover Alignment Tool mimics the balancer to center the cover on the front seal OR locates on the ID of the seal bore in the cover without the seal installed., 2., While the Oil Pan Alignment Tool mimics the oil pan thus providing critical alignment of the oil pan and front cover.
