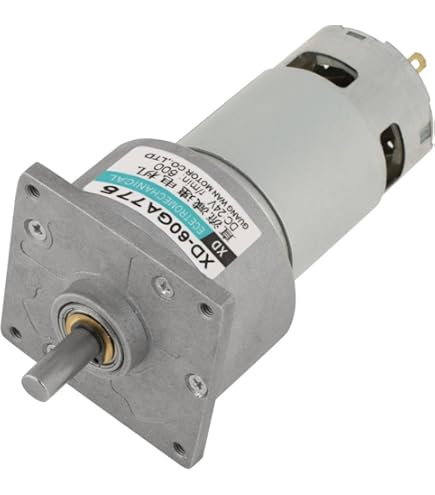

Encoder Metal Gear Motor DC 12V 24V 10~600RPM Dual Channel Encoder For DIY Robot

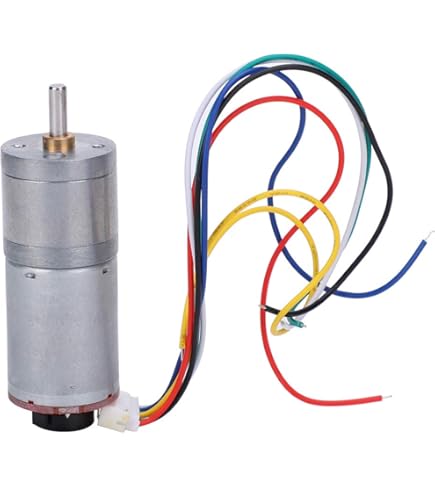

High Speed 12V DC Gear otor with Encoder for Bahrain | Ubuy The quadrature encoder provides a resolution of 48counts per revolution of the motor shaft. To compute the counts per revolution of the gearbox output, multiply the gear ratio by 48., Notice: 1., Be sure to keep the wiring connection correct before Working; 2., Be sure to keep the motor stopped before change the CCW/CW direction; Or the motor will be burned!, !, ! The two-channel Hall effect encoder is used to sense the rotation of a magnetic disk on a rear protrusion of the motor shaft. Arduino Robotics Motor Encoder Metal Gear Motor DC 12V 24V 10~600RPM Dual Channel Encoder For DIY Robot Arduino Encoder Motor For Robotics Wiring Diagram: Red - Motor power terminal ( );Black - Motor power terminal (-);Green - Quad encoder Ground;Blue - Quad encoder 5V Vcc;Yellow - Quad encoder A signal;White - Quad encoder B signal; * Application:Suit for Projects Such as Robotics,RC Car Model,Custom Servo, Arduino and 3D Printers,DIY Engine Toy ✔Main Body Dimensions: 72 x 21mm / 2., 84in x 0., 83in (L*D); Out Shaft Dimensions: 11 x 4mm / 0., 433 x 0., 1575in (L*D) with 10 x 0., 5mm / 0., 39 * 0., 017inches flat cut off; The rear of the motor is equipped with a dual channel Holzer effect encoder, AB dual output, single circuit per cycle pulse 12PPR, double down the road, a total output of 48CPR., Phase difference 90 degrees. MOTORREDUCTOR JGA25-370 CON ENCODER DC12V 130RPM – SAI SAC ✔Wiring Diagram: Red - Motor power terminal (+); Black - Motor power terminal(-); Green - Quad encoder Ground; Blue - Quad encoder +5V Vcc; Yellow - Quad encoder A signal; White - Quad encoder B signal.
