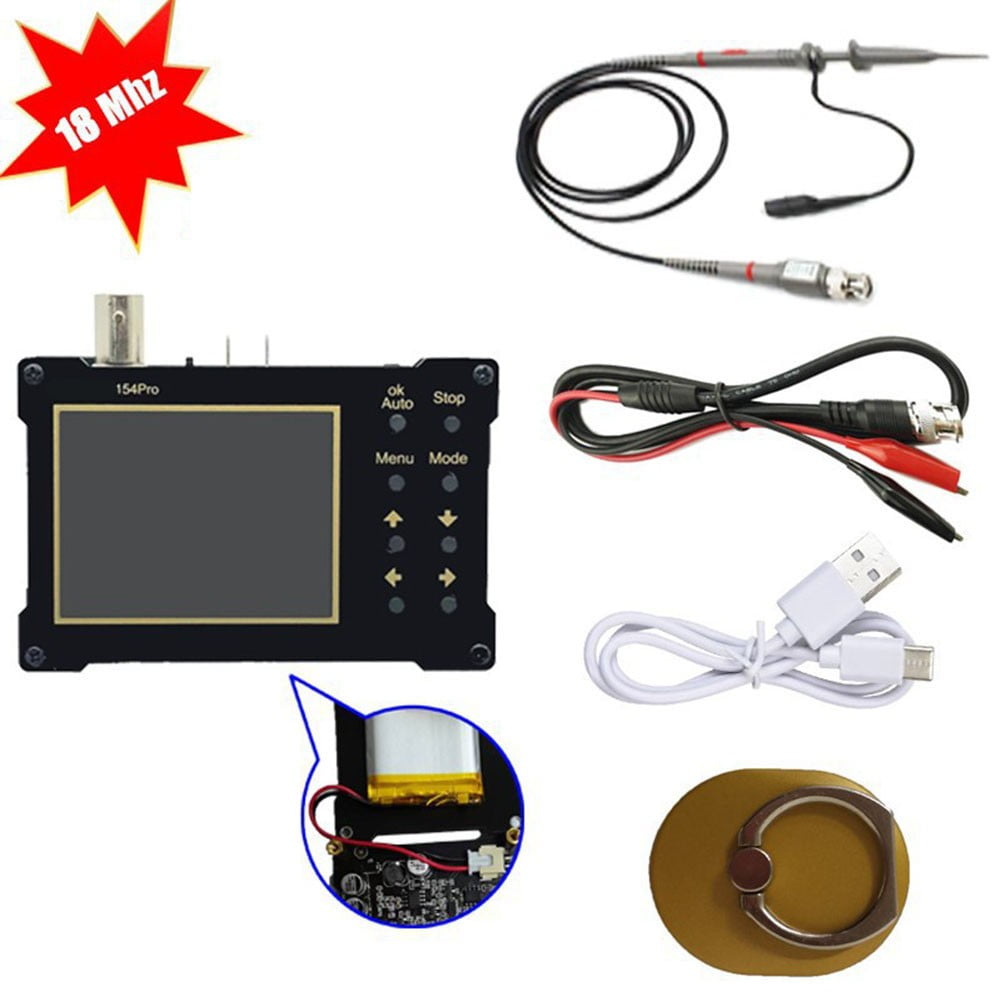

LCD Handheld Digital Oscilloscope Kit - 2.4"TFT Mini Automotive

ARM FPGA Oscilloscope LCD Handheld Digital Oscilloscope Kit - 2.4"TFT Mini Automotive Mini Oscilloscope For Electronics *Wide range of applications: suitable for single-chip microcomputer debugging, car maintenance, home appliance maintenance, DIY gaming, debugging, inverters, etc. KKmoon ZEEWEII DSO154Pro 320*240 Resolution 2.4-inch TFT Color Screen... Specification:*Name: Oscilloscope*Model: DS0154Pro*Material: ABS*Bandwidth: 18M*18M bandwidth version: 1 * Built-in charging, 3., 7V, 1000mAh (not included)*Hardware solution: ARM+FPGA+ADC*Screen: 2., 4 inches TFT LCD display*Channel: 1*Resolution: 320*240*Sampling rate: 40MSa/s*Rise: *Storage depth: 16Kbit*Impedance: 1MΩ*Basic: 50ns-10s*Vertical sensitivity: 20mV/div-10V/div*Maximum voltage: ±40V(x1); ±400V(x10)*Input impedance: 1MΩ*Signal generator: 0-500K frequency adjustable, fixed voltage 3., 0V*Trigger Mode: Auto/Normal/*Waveform measurement: 14 types*Scroll mode: &;200ms to enter scroll mode*Product size: 87 * 58 * 18 mm/3., 42 * 2., 28 * 0., 71 inchesPackage Included:1X oscilloscope, 【2., 4-inch TFT LCD Display】Equipped with a 320*240 resolution color TFT LCD display, with bright colors, high contrast, and clearly visible data. ZEEWEII DSO154Pro Digital Oscilloscope 【Optional Bandwidth】There are two kinds of bandwidth for you to choose, you can choose 1M bandwidth version or 18M bandwidth version according to your needs, and you can easily deal with measurement and testing in various fields. 【High Practicability】ARM+FPGA+ADC architecture, 40MSa/s sampling rate, more stable and higher precision. ZEEWEII DSO154Pro Digital Oscilloscope Features:*Square wave generator: It can output six kinds of waveforms including sine wave, square wave and triangle wave. The duty cycle is adjusted from 1% to 99%. The upper part of the oscilloscope can output an adjustable waveform with an amplitude of 3V, the frequency adjustment range is 0-2MHz, and the precision can reach 0., 1Hz.
