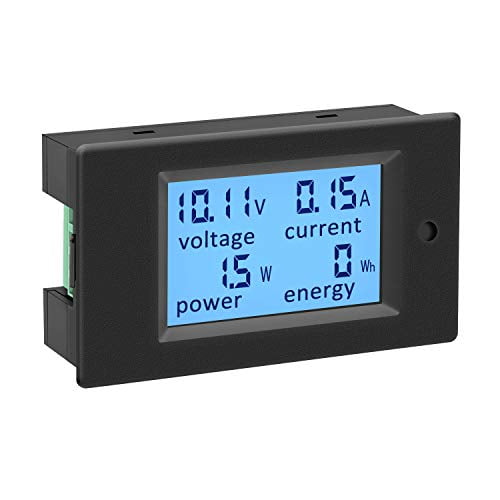

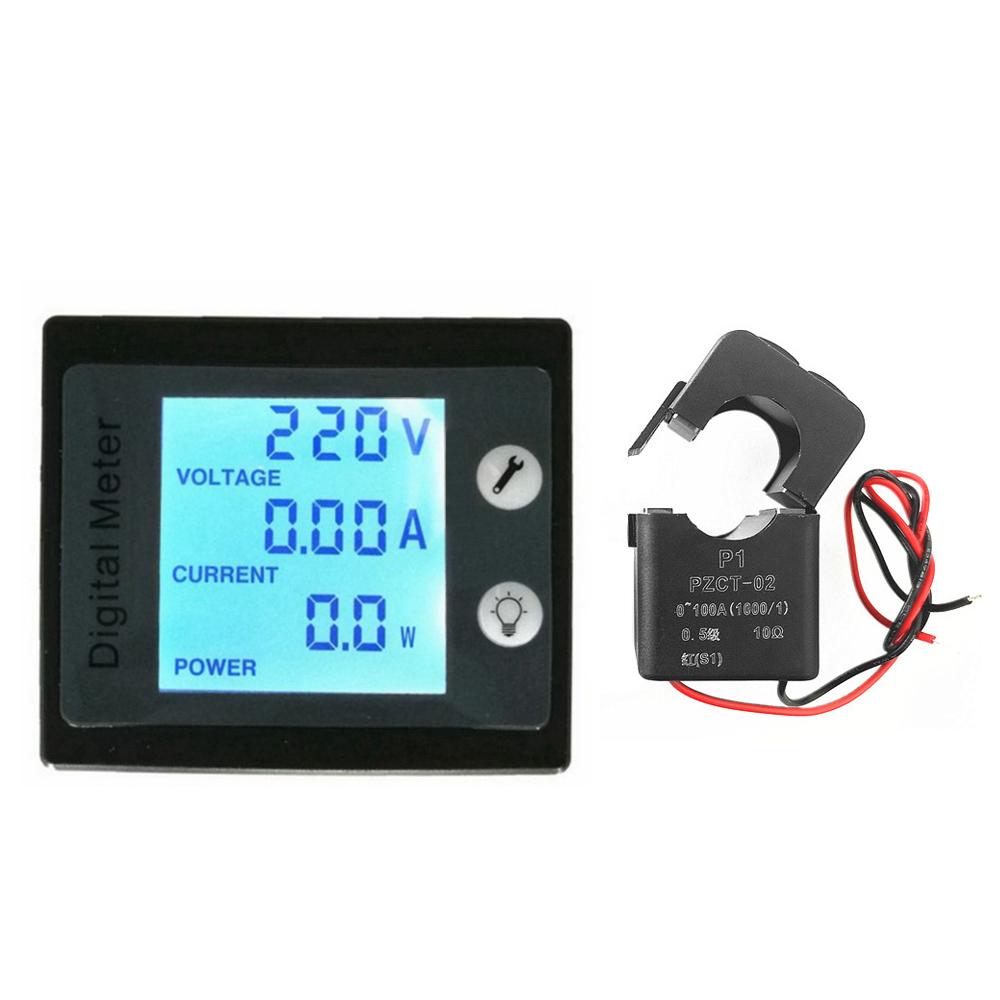

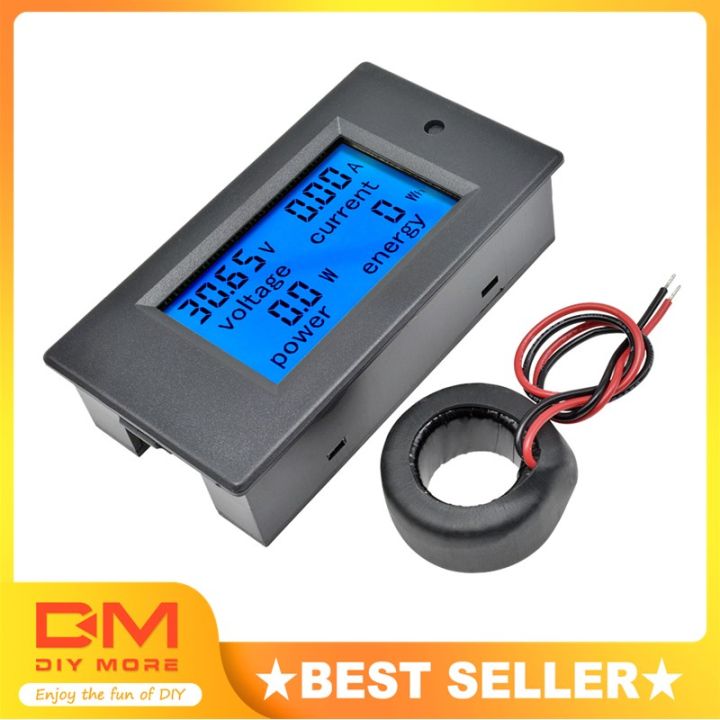

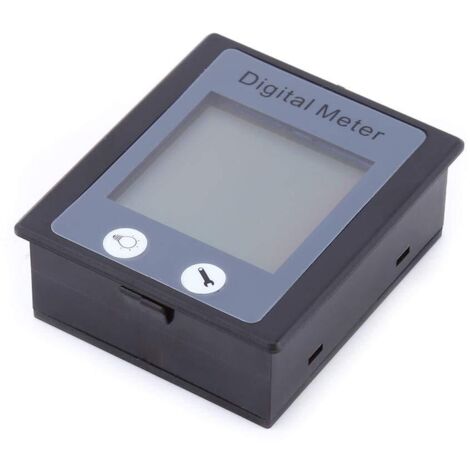

Small Size , can be mounted to different place. Display Current Voltage Active Power Energy at the same time, with LCD blue backlight, Can be turned on/off manually. The electric energy meter can simultaneously monitor and display voltage, current, active energy, electric energy, frequency and power factor (Municipal electric power is pure sine wave). Test Range: 1., Working voltage: 80 ~ 260VAC2., Test voltage: 80 ~ 260VAC2., Rated power: 100A / 22000W3., Working Frequency: 45-65Hz4., Measurement accuracy: 1., 0Button Description 1., The backlight controlBy short press the button to turn on or off the backlight, the backlight status automatic storage., 2., The power clearedStep 1: Press the power button 5 seconds until the digital display window flashes, then release the button;Step 2: If you press the button again, the consumption data is cleared and cleared quit flashing;Step 3: If you press the button again 5 seconds long until no flashing, the charge data is not cleared and exit cleared., 3., The power to set the alarm valueStep 1: Press the button, when the LCD screen display SET CLr after the release button, set the value into the power status report;Step 2: Power area displays the current value of the power alarm and the lowest digit starts blinking, then you can press the button of the digital +1, when there is no key operation more than three seconds, automatically switches by short digital set as above;Step 3: After setting, press the button more than five seconds to automatically save and exit, the scope of active power threshold set for the 0., 0 ~ 22., 0kW., Note: 1., Please make sure the AC input is Pure Sine Wave. P10 Bayite AC 80-260V 100A BAYITE-PZEM-061 LCD Display Digital Current Voltage Power Energy Multimeter 1542696343 4c5943cd2 Progressive AC 80-260V 100A LCD Digital Display Multi-Function Power Monitor Voltage Current Frequency Power Factor Energy Meter Ammeter Voltmeter with Split Core Current Transformer 100 bought in past month Cyber Monday Deal Save 5% on 2 select item (s This is very importatnt., 2., Applied load should not exceed the rated power., 3., Wiring order can not be wrong., 4., This module is suitable for indoor applications, please do not use outdoors. Package includes: 1x AC Power Multimeter AC voltmeter 80-260V, AC meter 0-100A, Active power 0-22 kW, electric energy 0-9999kwh, please do not exceed the rated parameters. DollaTek Power Multimeter AC Digital Multimeter Voltage Current Power Energy Detector Meter 80 260v 5a Ammeter 220v Voltmeter Lcd Display Digital Meter Tester Los Voltaje This product is not suitable for inverter, unless you have tested that the waveform and frequency of the inverter are exactly the same as the mains, and there is no excessive glitch interference.
