MESR-100 ESR Capacitance Meter Auto Range In Circuit Tester Capacitance Tester Capacitance Tester To Repair TV, LCD, Audio Card

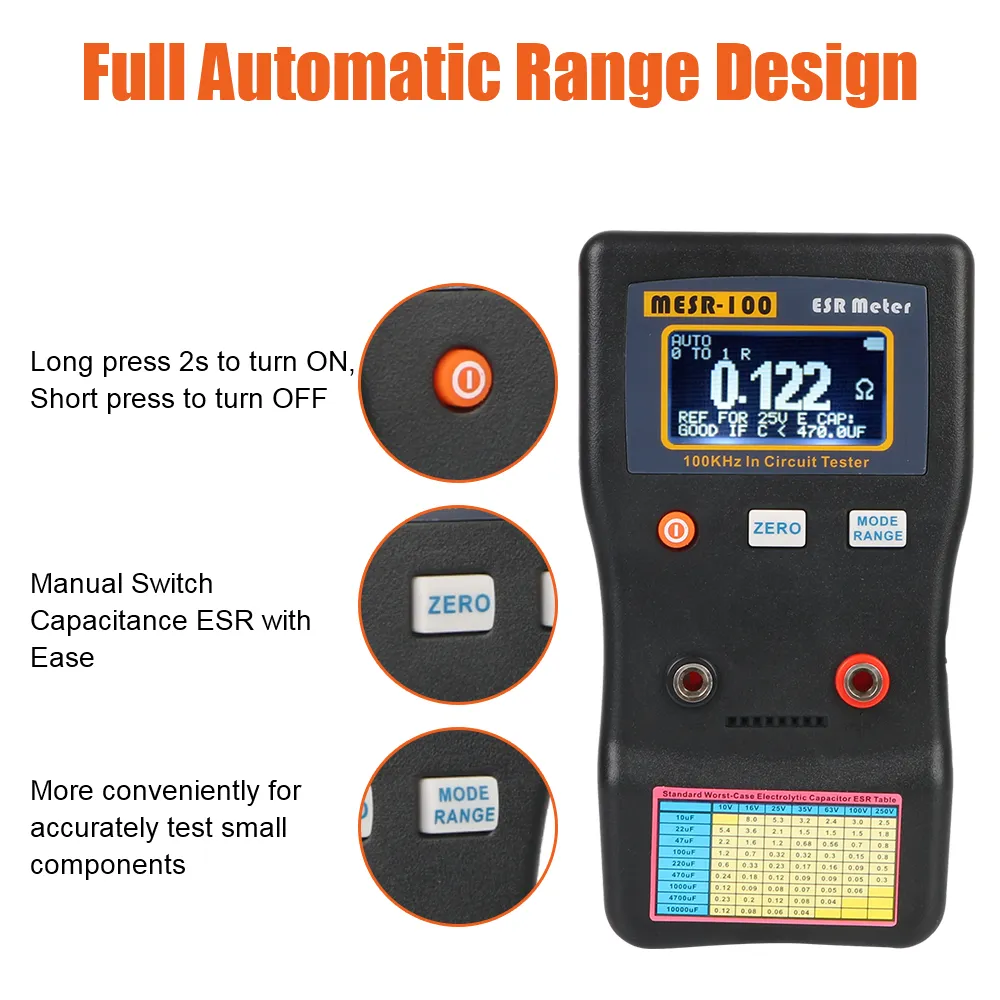

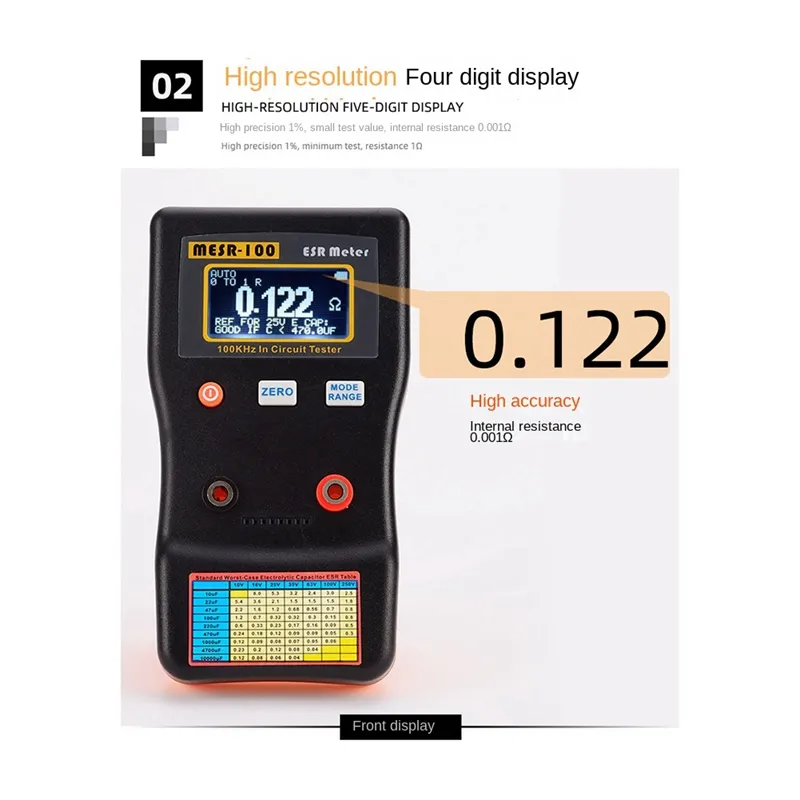

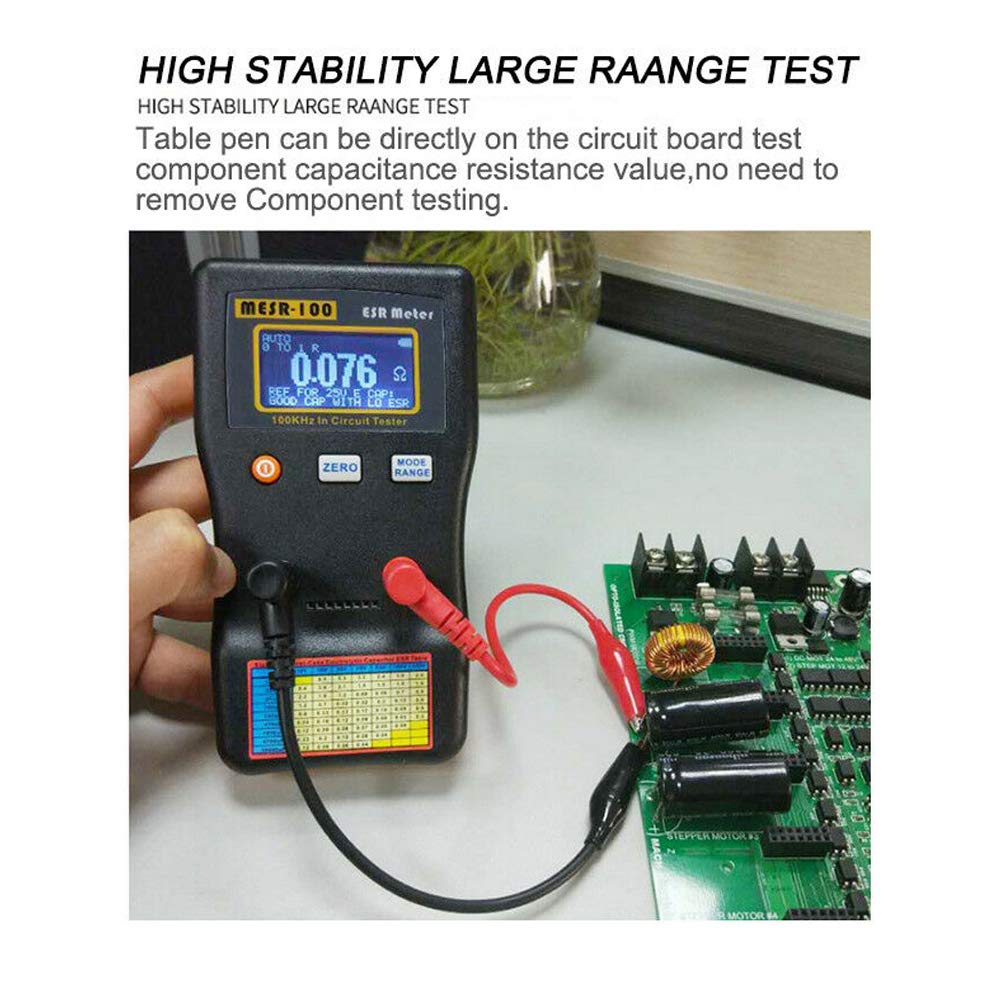

we can in circuit testing the capacitor is good or not. Resistance Capacitance Meter MESR-100 ESR Capacitance Meter Auto Range In Circuit Tester Capacitance Tester Capacitance Tester To Repair TV, LCD, Audio Card MESR-100 In-circuit Capacitor Tester 100kHz Auto Ranging The impedance become small, and we can then measure the true series resistor value. ◆ Used in Circuit Test: Our meter only applies less than 15 mV DC or peak to peak in a good capacitor, as a result we can use it as a circuit test. ◆ Easy to Read: With a large backlit LCD screen, data can be displayed clearly. ◆ Dual Terminal: With dual terminal structure, for quick and easy inspection of the general capacitor or resistor, an table printed for quick verification. Features: It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C). Using this theory, we can measure that the capacitor is damaged / damaged or in good condition. Specifications: Model MESR-100 Range Accuracy (After Zero, tested with 1,10,100R resistor) Refresh Time (Manual Mode) *Auto mode take 0 to 2s more time depend on value 0., 000 to 1., 000R 1%+2Digit 0., 4s 1., 000 to 10., 00R 1%+1Digit 0., 4s 10., 00 to 100., 0R 2%+1Digit 0., 4s Accuracy Up to 1% (detail on table) Wide Measurement Range: 1uF (for 0., 1uF the error will be larger on equation 1/(2*pi*F*C) @ 100Khz ) High Resolution 4 digit, or 0., 001Ohm @ 1 Ohm range Measuring voltage Clamping voltage 0., 15V (open voltage) Battery 2X AA 1., 5V battery(not included) External Power 5V micro USB Battery Life time 80 Hours Operating current 0., 02A Size 14., 4*8., 1*3., 1cm/5., 7*3., 2*1., 2in Weight Approx., 219g/7., 7oz Package List 1 * Capacitance Meter (battery not included) 2 * Test Clips 1 * User Manual This MESR-100 auto-ranging capacitor ESR and low Ohm meter measuring range from 0.001 to 100.0R, support in circuit testing 100% brand new and high quality · Testing the capacitor is good or not during repairing TV, LCD, audio board, etc · Dual terminal used for fast and easy inspect... Perfect and easy-to-use household tools for the laboratory, factories and radio enthusiasts. MESR-100 Capacitor Tester, Geevorks ESR Meter in Circuit Capacitor Tester, Auto-Ranging Capacitor for Measuring Capacitance Resistance Circuit with SMD Test Clip The impedance becomes small, and then we can measure the true resistance value in series. ◆ Portable Design: There is a back support to support the multimeter, and you can also pick up the test probe for your convenience.
