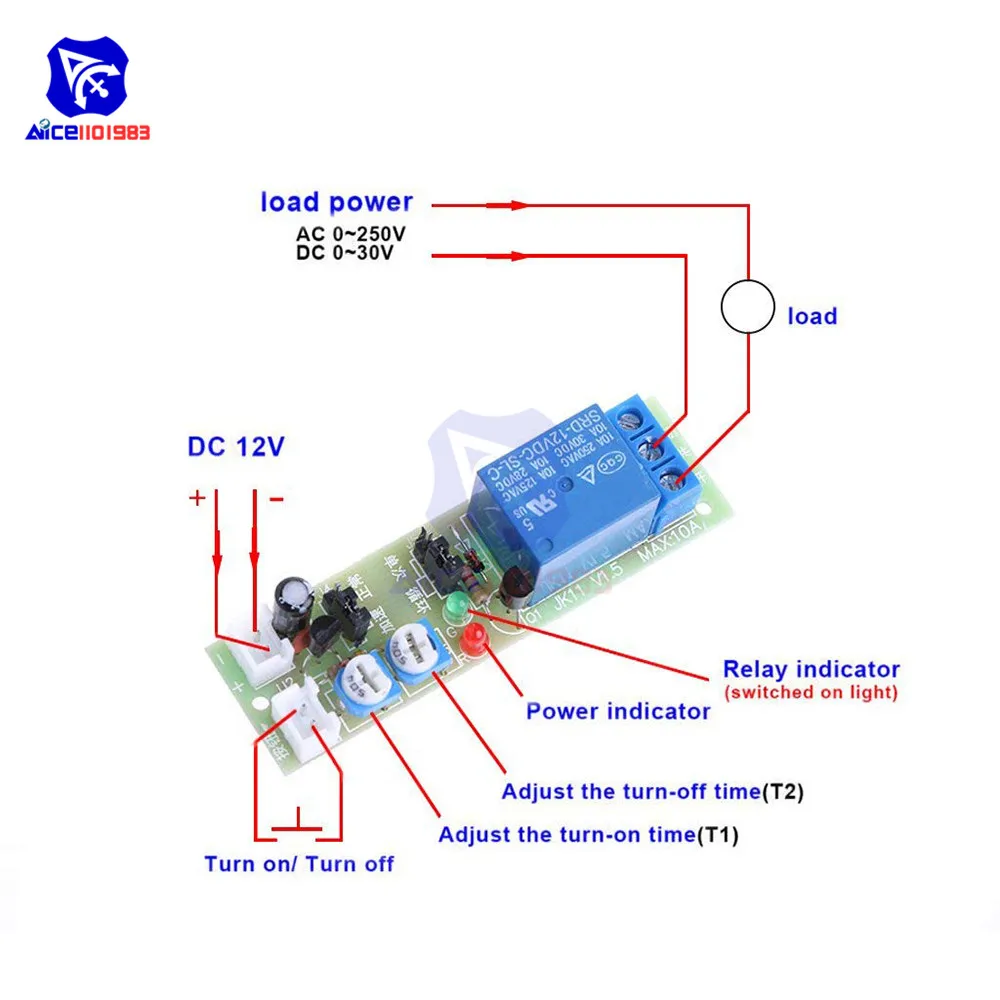

Dc 12v 24v Timer Module Adjustable Cycle Timer Delay OnOff Switch Relay Module Adjustable Cycle DC Timer Relay Module ■ Normal speed and fast mode settings: OP1 jumper is used to select normal speed and fast mode (default is normal speed). ■ Setting of cycle mode and single mode: OP2 jumper is used to select cycle mode and single mode (the default is cycle mode). Time Delay Relay Module: DC 12V, Delay Turn On/Off, Timer Voltage Board Cycle mode: After starting, the relay is on-off-on-off., ., ., , it keeps circulating according to the set time; Single trigger: After starting, the relay is turned on, and the relay is turned off after T1., (After disconnection, the action ends and waits to be triggered again), Features: 1., This module uses MCU as the main chip., 2., Timer relay module, with high timing accuracy, stable and reliable performance., 3., MCU watchdog circuit and dedicated reset chip., 4., Support 2 modes, single mode (one time) and cycle mode, you can simply switch the mode by adjusting the jumper., 5., After power on, the module needs to work repeatedly and connect the two wires of Key., 6., There are a variety of voltage and time ranges for you to choose, on time and off time are adjustable., 7., It is widely used in timer operation equipment, machine repeat test circuit, fish tank intermittent pump, etc., Mon., Mode: 1., The module Power-on, When triggered the relay is switched on, timer delay off., 2., When triggered on the delay process, again triggered, it will immediately interrupt the delay., Cycle Mode: 1., The module Power-on, When triggered the relay is switched on, (T1) timer delay off. T1 and T2 are set by two adjustable resistors, respectively., 2., When triggered on the delay process, again triggered, it will immediately interrupt the delay. 【2 MODES】This timer module supports 2 modes, mon mode(once) and cycle mode, and you can simply switch mode by adjusting the jumper. Shop Hilitand 1pc Dc 12v 24v Adjustable Cycle Times Switch Module at best prices at Desertcart . ✓FREE Delivery Across (T2) timer delay on., Such cycle. Precautions: ■The module power supply has no protection against reverse connection, because remember not to reverse the power supply. 【USAGE】Connect 2 wires of Key if you need module to work recurrently after power on. 【STABILITY】This is a timer relay module with high precision, stable and reliable performance. Otherwise, the module will be damaged. 【ADJUSTABLE DELAY TIME】There are many voltage and time range for your choice, both on time and off time are adjustable. ■ Trigger line access: The two white wires on the trigger end are connected to a switch. ■Only the passive switch can be connected to the trigger terminal, not the voltage signal. 5V/12V/24V Delay Timer Relay Module - Infinite Cycle ON Off Switch For The trigger switch can be a light touch switch, a micro switch, an optocoupler C-E terminal, a relay contact, etc.
