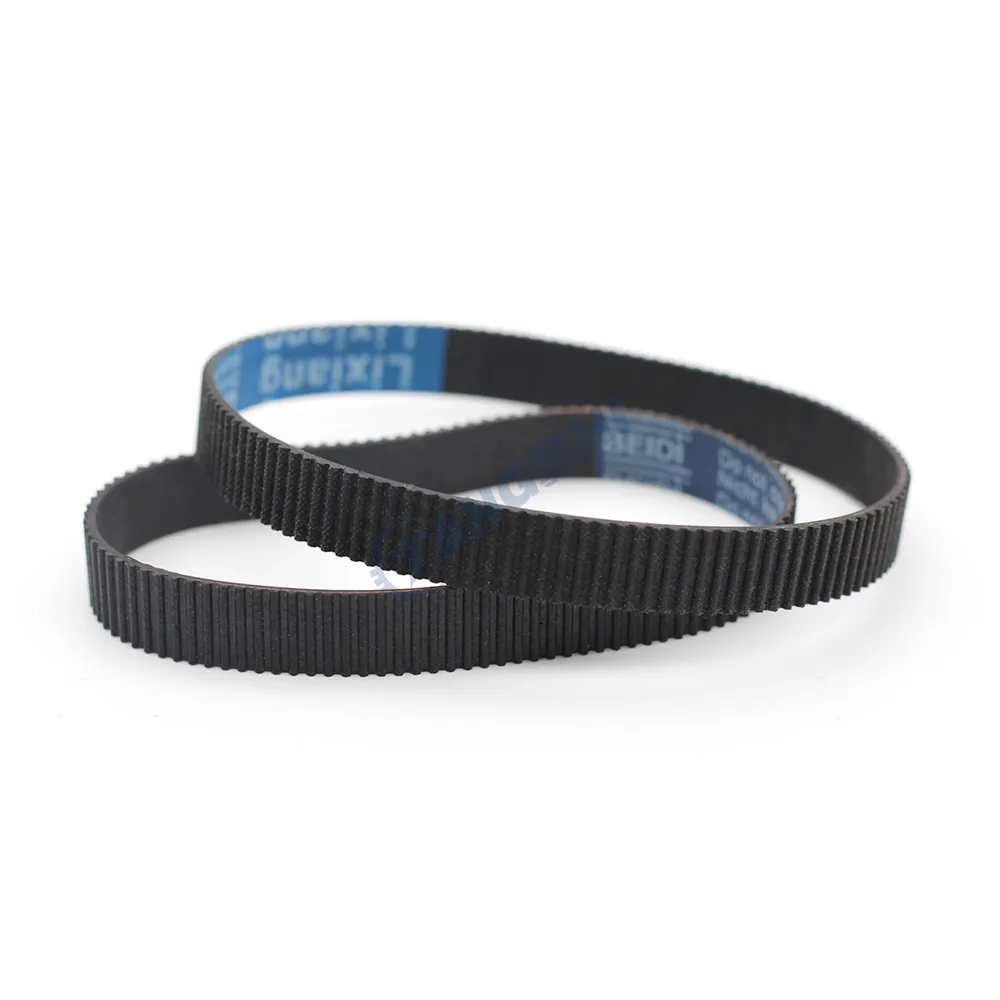

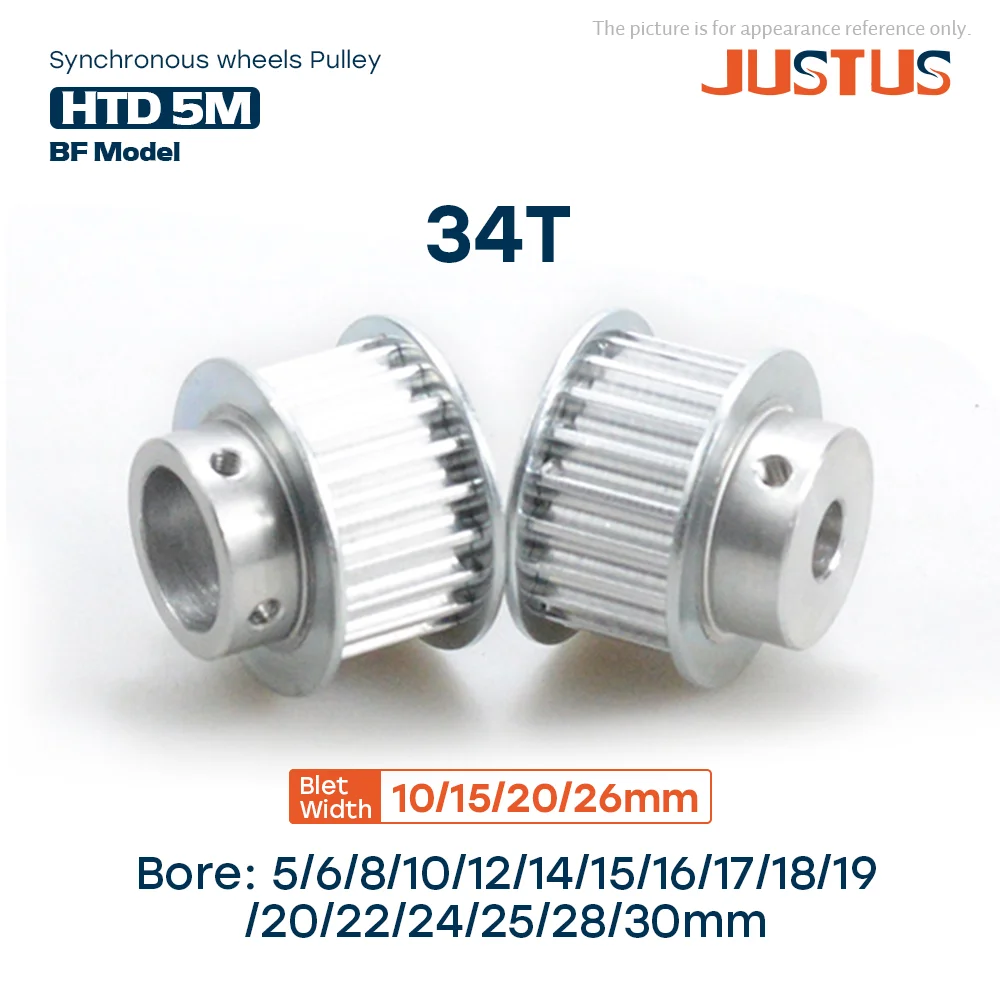

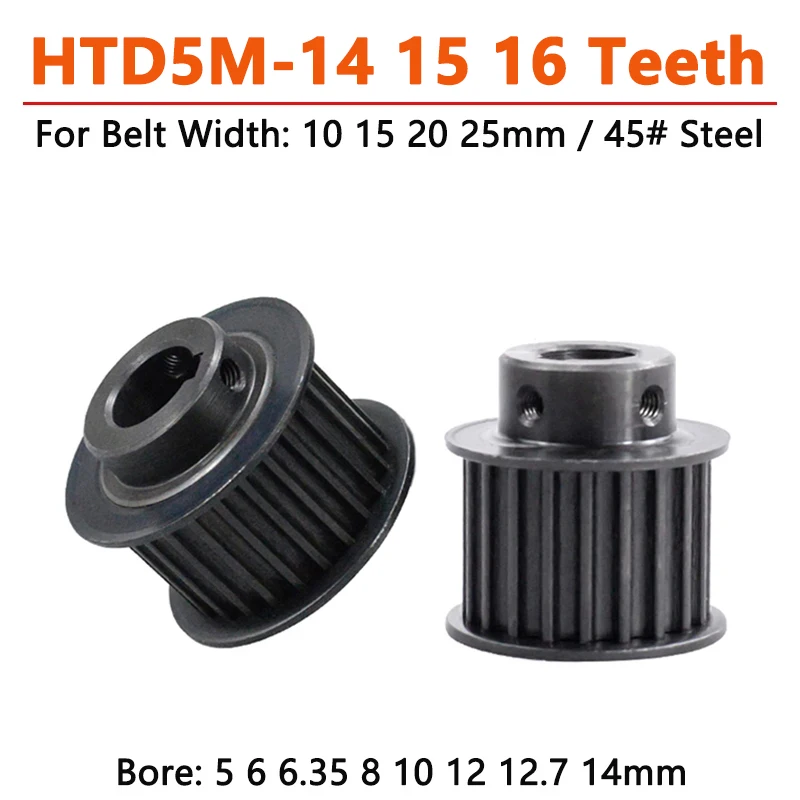

Synchronous belt drive with accurate transmission ratio, no slip, constant ratio can be obtained, precision transmission, smooth transmission, shock absorption, noise, transmission speed ratio range 5M20T HTD5M Double Timing Belt Pulley 10mm Bore 16mm width Stepper Industrial Machine Belt Htd5m-300 Timing Pulley Belt Rubber Drive Arc Teeth 10/15/20mm Width 1 CNC Machine Belt Timing Belt Pulley Htd5m-09 5m-15 Sprockets Timing Belt Pulley - Timing... Dynamic flexing is good, anti-cracking performance , Ozone excellent performance Timing belt pulley HTD5M 15 tooth for 15mm wide belt Dynamic flexing is good, anti-cracking performance Ozone excellent performance Resistance to aging, heat, oil, wear-resistant Synchronous belt drive with accurate transmission ratio, no slip, constant ratio can be obtained, precision transmission, smooth transmission, shock absorption, noise, transmission speed ratio range Widely used in textile, automotive, chemical fiber, cigarette, paper, printing, chemical and other industries equipment Specification: Name: HTD5M-300 Belt Style: HTD5M Series Belts Positive Drive Model:HTD5M-300 (HTD300-5M) Belt Width: 10mm / 15mm / 20mm(Optional) Material: Chloride butyl rubber + Glass fibre + High elastic nylon canvas Parameters: Teeth type:Circle-arc tooth Teeth number:60 Whether standard parts: Standard parts Pitch: 5., 00mm Tooth height: 2., 06mm Belt thickness: 3., 8mm Minimum allowable bending diameter: 25 Tensile strength: =160N/mm Reference load: 130N/mm Elongation: =4., 0% Hardness(shore A):75±5 Adhesion strength of cloth: 6N/mm Adhesion strength of core rope: 400N/mm Gear shearing intensith: 50N/mm Package includes: 1 x HTD5M-300 Timing Belt Note: 1., Prohibited twists and turns, so as not to damage the skeleton material, affecting the belt strength., 2., Do not scratch the belt, so as not to cause early damage to the belt., 3., Prohibit the long-term and oil, water and other substances in long-term contact, to avoid contact with chemicals., 4., In the replacement of timing belt, belt tension must be reduced to a minimum in order to remove, forbidden timing belt in the case of high tension, the use of non-professional tools hard pry down.
