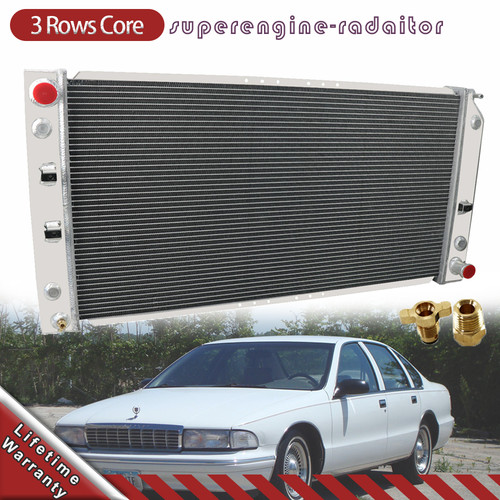

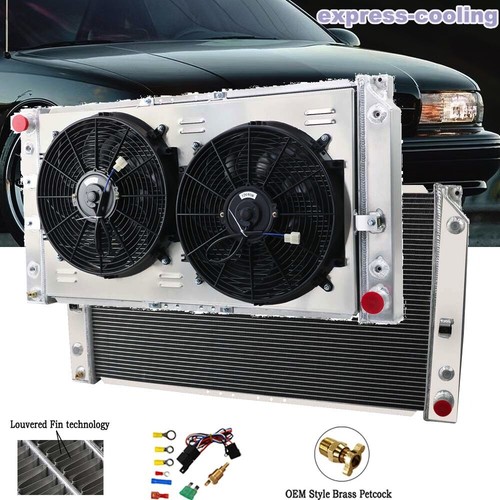

Description This American-made radiator is a direct fit in your '94-'96 Chevy Impala SS and is perfect for upgraded horsepower. Whether you've modified the stock LT1 or gone with an LS or LT swap, with twin Spal fans and a fabricated aluminum shroud this radiator looks sharp and keeps you cool Build-in Transmission Oil Cooler 5/8-18 UNF and Engine Oil Cooler 5/8-18 UNF Brand-new radiator engineered and manufactured to meet OEM specifications for easy installation. Fan Details: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 14., 050 Thickness (in): 2., 500 Number of Blades: 8 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12., 70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature 3/8 NPT thread-in brass probe w/ 1/2 NPT adapter included Probe typically threads into radiator, water outlet or manifold Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans This set up will run Fans & pull air in through radiator Product Includes: 1 X 3-Row AA5052 Aluminum Radiator 1 X AA5052 Aluminum Shroud 2 X 14inch Fans (Includes mounting kits) 1 X Thermostat Relay Kit PLS check core/overall/inlet/outlet SIZE carefully before you order Contact us if you have any question about our product PLS Note: If need 3-row radiator without fan ASIN is: B0B7N57MMH, Core Size(inch): 30., 5 H x 17., 25 W / Overall Size(inch): 35., 63 L x 18., 7 W / Rows: 3 , Inlet(inch): 1., 26 / Outlet(inch): 1., 26 / Core Thickness(inch): 1., 74 Aluminum Radiator 3 Row Shroud Fan Relay For 1969-72 Chevy Corvette Small Block - China Radiator 5.7l V8 Cooling Radiator Its lightweight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently Direct fit and built to last long with high quality aluminum core and plastic tanks preventing corrosion 3-Row of tubes Core Racing Design Inlet Hose Connection: Driver Side Outlet Hose Connection: Passenger Side Core Material:Full Aluminum Tank Material: All Aluminum Transmission Oil Cooler: Passenger Side Engine Oil Cooler: Driver Side Flow Type: Crossflow Crafts: 100% Tig welded Delivery: Local Delivery Fitment Type: Direct Replacement Petcock Drain: OEM style brass petcock drain Radiator Cap: CNC machined filler neck and cap Please Check the Size Before You Buy! 4 Row Radiator Shroud Fan For 94-96 Chevy Caprice Impala Buick Roadmaster 5.7 Shroud fan provides protection and extra heat heat dissipation for the radiator.
