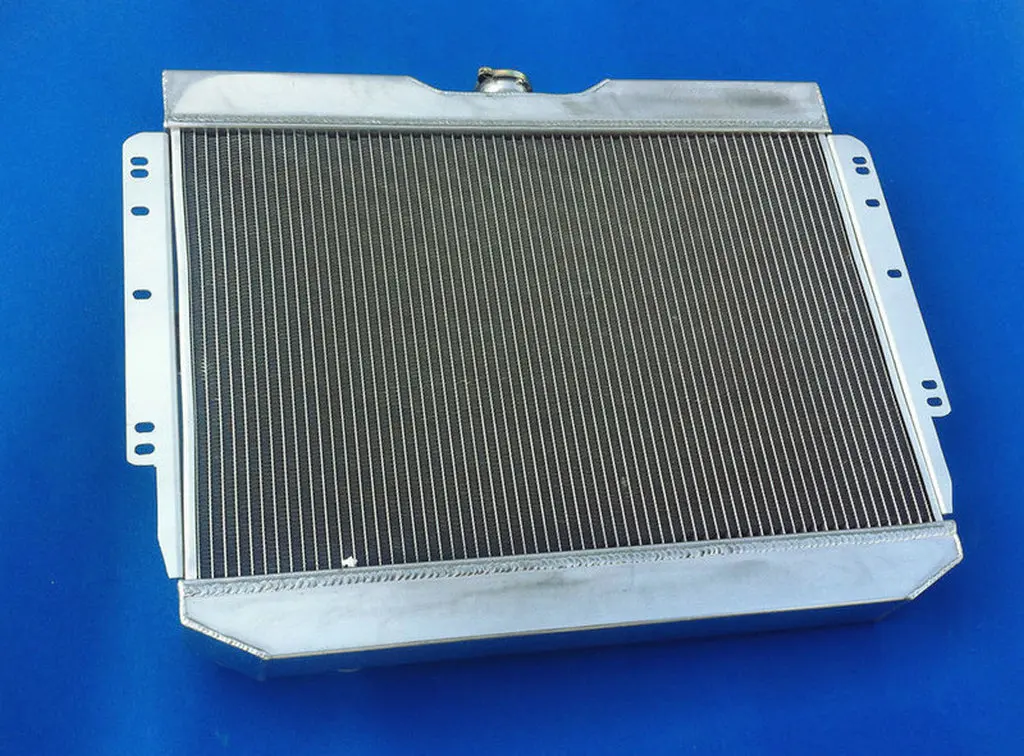

Upper Inlet(inch): 1-1/2 / Lower Outlet(inch): 1-3/4 / Core Thickness(inch): 1., 74 ENGINKUHLER 3 Row Radiator Compatible for 1963-1968 Chevy Impala 3 Row Radiator With Fan Shroud Kit 3ROW Radiator Shroud Fan Relay For 63-68 Chevy Impala,1964 65 66 1967 EL Camino Aluminum Radiator For 1964 Impala El Camino Radiators & Shrouds · El Camino Shroud Combos (59-60) · El Camino Shroud Combos (64-67) · El Camino Shroud Combos (68-77) · El Camino Shroud Combos... Core Size(inch): 16 x 25-1/4 / Overall Size(inch): 22-1/4 x 27-3/4 x 3 3/4 Thickness / Rows: 3 FOR 1963-1968 CHEVY CHEVELLE/ IMPALA. FOR 1964-1967 CHEVY CHEVELLE/EL CAMINO I6/V8. FOR 1964-1967 Chevy Chevelle Malibu. FOR 1964-1967 Chevelle Product Includes: 1 X 3 Row Aluminum Radiator (includes radiator cap) 1 X Aluminum Shroud 2 X 12inch Fans (Includes mounting kits) 1 x Thermostat Relay Kits Radiator Specs: Upper Inlets: Located on the driver side Lower Outlets: Located on the passenger side Core Material: Full Aluminum Tank Material: Aircraft AA5052 grade aluminum Petcock Drain: OEM Style Brass Petcock Drain Radiator Cap: CNC machined filler neck and cap Trans Cooler Details(inch): 1/2 20 Straight Thread G1/4 Engine Oil Cooler: No Flow Type: Downflow Mount Type: Bracket Mounting Specs: Vert - 10 1/2 / Horizontal - 26 3/4 12inch Fan Spec: Maximum Fan CFM: 2300±200 FAN Diameter(inch): 12., 05 X 12., 05 X 2., 5 Number of Blades: 10 blades (Plastic) Amp Draw: 12., 70 amps Maximum Fan RPM: 2,250 rpm Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans OEM/Substitute Numbers: 040876432895, 3002308, 3002312, 3002313, 3005802, 3007610, 289, MC289, DPI289, CC289, CU289, SBR289, RAD289, AE289, EC289, KKS289, Q289, SPTCU289, RA289, RK289, 0289AA, RAD289, SDD-RA-MID64, 010690SNN This Radiator Compatible with: 1964-1967 CHEVY CHEVELLE/EL CAMINO L6 / V8 1963-1968 IMPALA MANY CHEVY GM CARS 1964-1967 Chevelle 1963-1968 CHEVY CHEVELLE/ IMPALA Bel-Air 1963-1968 Chevy Impala/Bel Air/Chevelle 1964-1967 Chevy Chevelle Malibu 1963-1968 Chevy Biscayne 1966 1967 Chevy Caprice Vital Notes: PLS contact us if you received this radiator or packing box damaged during shipping PLS double check sizes/pics of this radiator to avoid ordering wrong Use AmazonConfirmedFit to confirm this radiator fit your vehicle before you order
